IGBTs
KGF15N65PDA

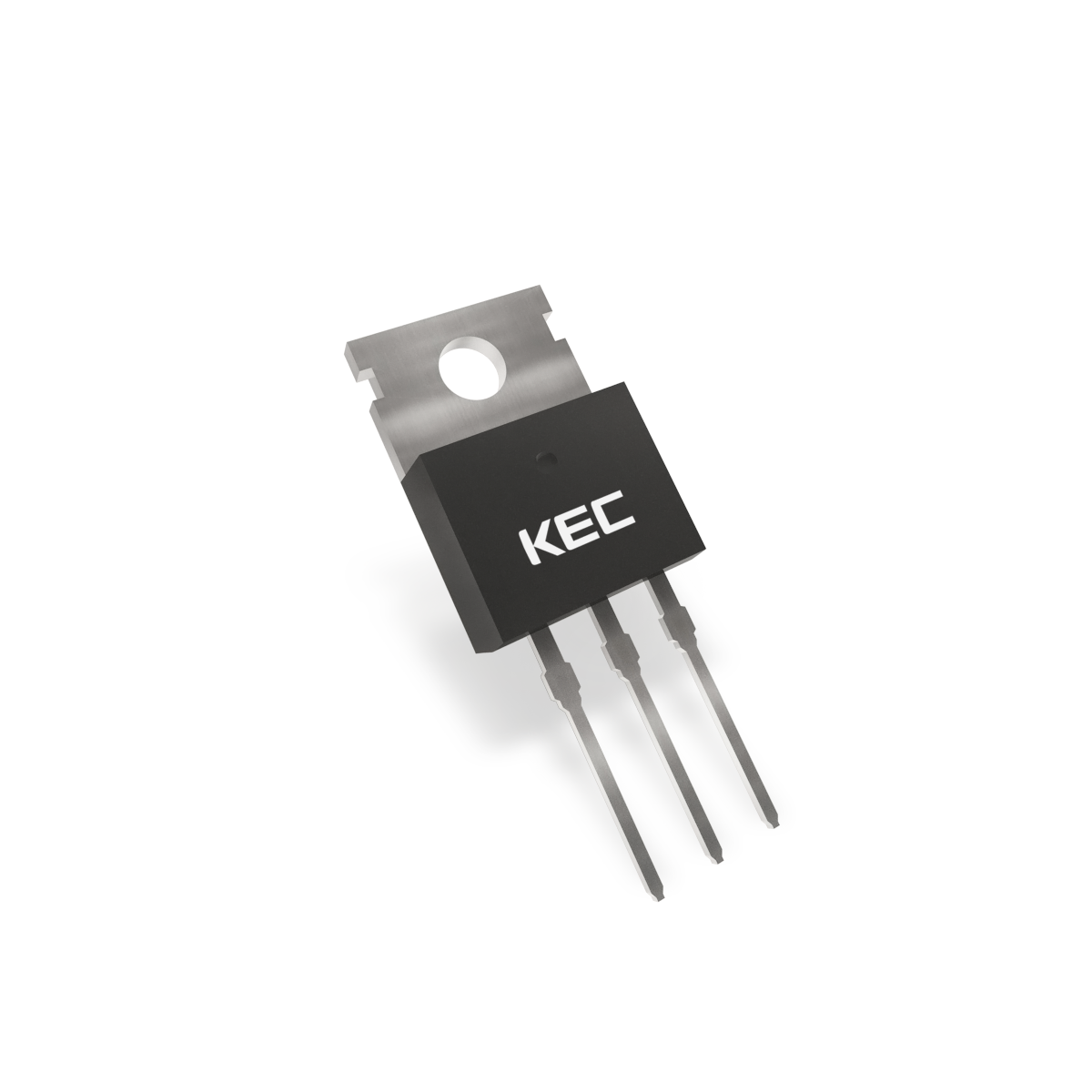

Hard switching IGBT, TO-220AB(3), 650V, 15A
Application
· Consumer - Home Appliance Air Conditioner, IH Plate, Induction, Refrigerator, Washing Machine
· Industrial - Motor, Power and Energy(Inverter, UPS, Welding Machine)
Features
· High speed switching
· High ruggedness and temperature stable behavior
· Extremely enhanced avalanche capability
| Item No | KGF15N65PDA |
|---|---|
| Package | TO-220AB(3) |
| Built in Diode | Y |
| VCES[V] | 650 |
| VGES[V] | ±20 |
| IC[A]@25℃ | 30 |
| IC[A]@100℃ | 15 |
| ICM[A] | 45 |
| IF[A]@25℃ | 15 |
| PD[W]@25℃ | 99 |
| TJ[℃] | 150 |
| Min VGE(th)[V]@25℃ | 3.9 |
| Max VGE(th)[V]@25℃ | 5.9 |
| Typ VCE(sat)[V]@25℃ | 1.75 |
Product Datasheet
-
[Product Datasheet] KGF15N65PDA.pdf
399.9 KBPDF
-
[Package Dimension] TO-220AB(3) PKG.pdf
62.3 KBPDF
