High Voltage MOSFET
KPM8N60FW
NEW

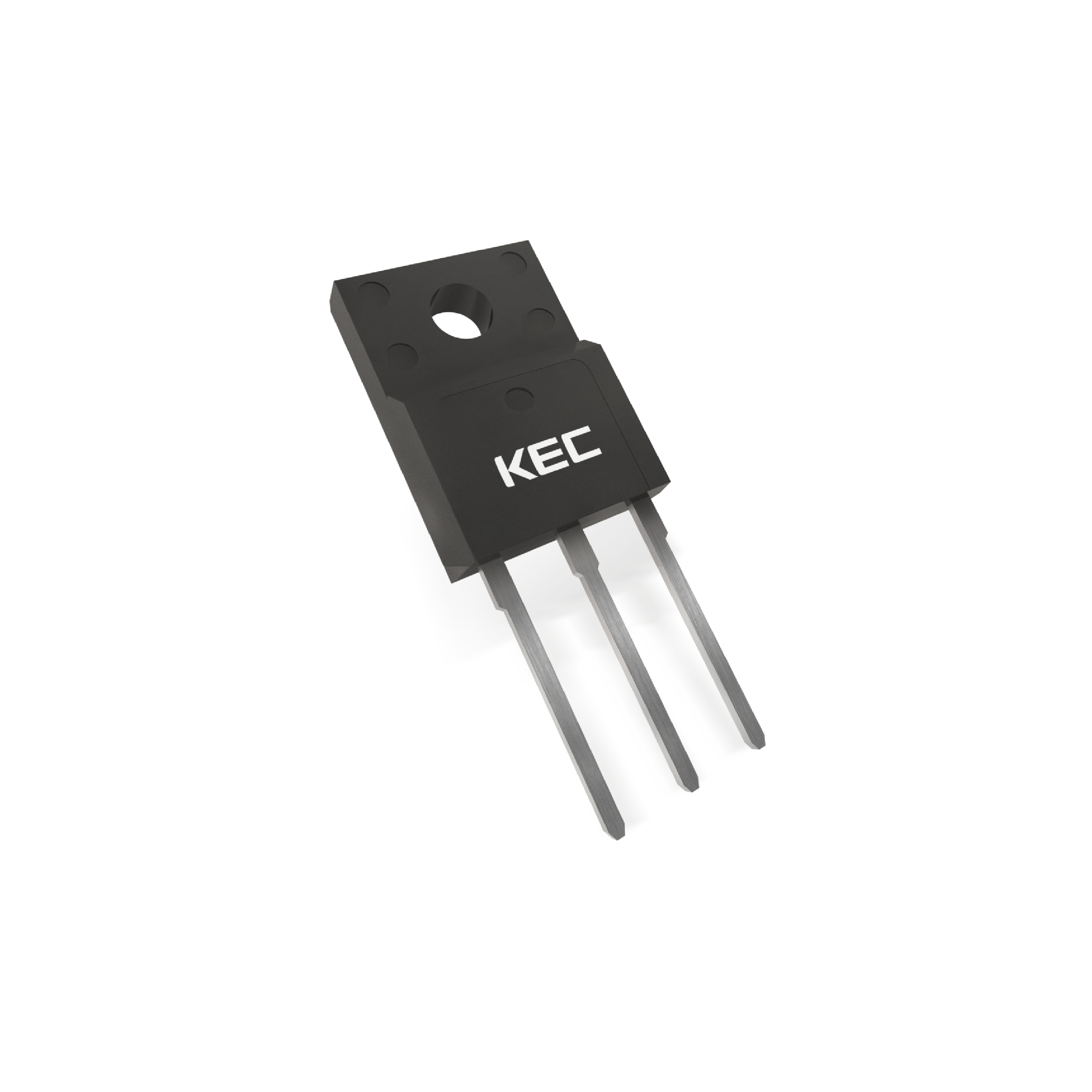

Super Junction MOSFETs, TO-220ISW, 600V, 8A
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast switching time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using switching mode power supplies.
| Item No | KPM8N60FW |
|---|---|
| Status | New |
| AEC-Q | N |
| Package | TO-220ISW |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 8 |
| PD[W] | 39.1 |
| RDS(ON)@10V[Ω] | 0.58 |
| Qg [nC] | 16 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 560 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KPM8N60FW.pdf
326.2 KBPDF
-
[Marking Information] M KPM8N60FW.pdf
65.6 KBPDF
-
[Package Dimension] TO-220ISW PKG.pdf
110.5 KBPDF
-
[Packing Information] TO-220ISW Packing.pdf
185.1 KBPDF
