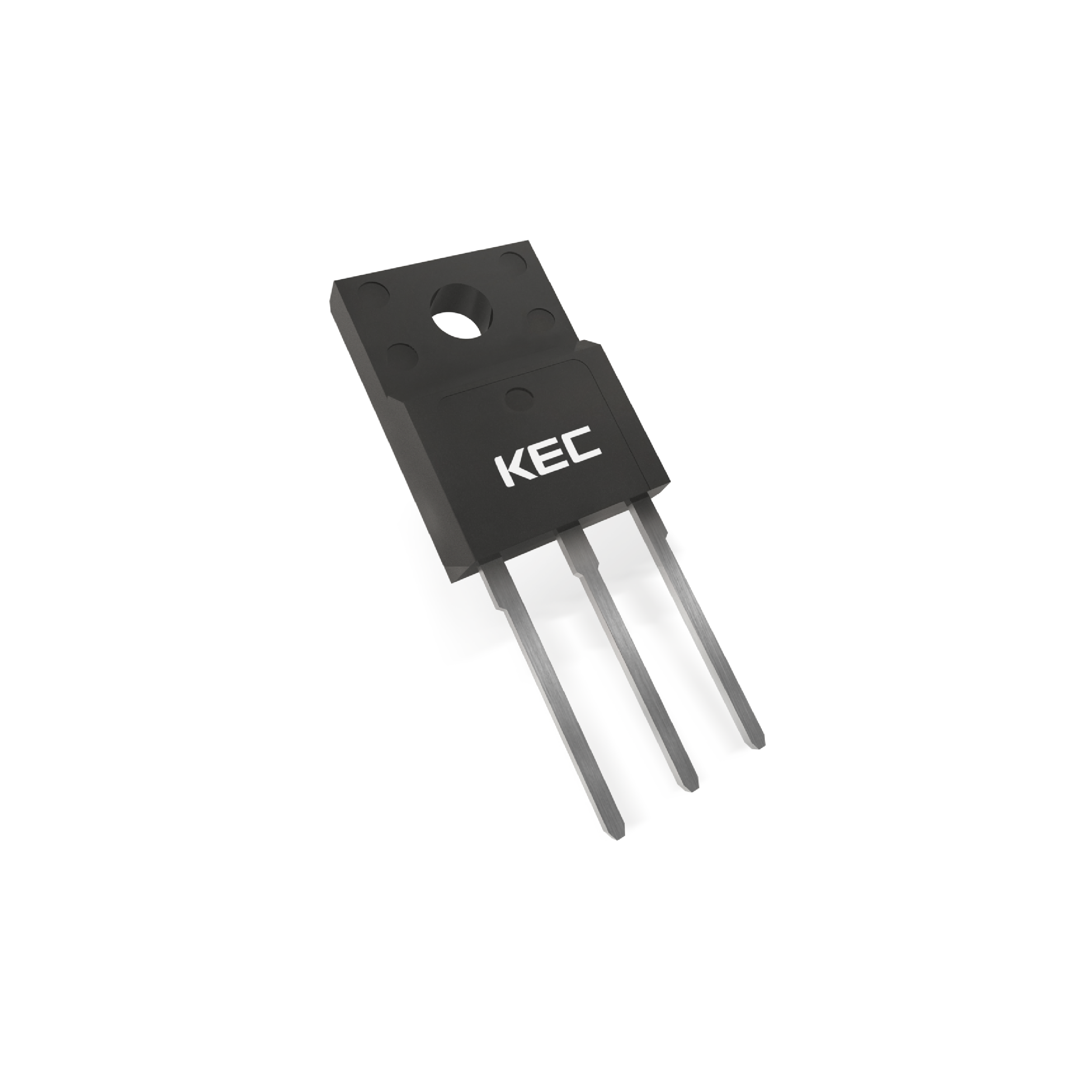

High Voltage MOSFET
KPM15N60FW
Super Junction MOSFETs, TO-220ISW, 600V, 15A
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast switching time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using switching mode power supplies.
| Item No | KPM15N60FW |
|---|---|
| Package | TO-220ISW |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 15 |
| PD[W] | 50 |
| RDS(ON)@10V[Ω] | 0.28 |
| Qg [nC] | 32 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 1134 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KPM15N60FW.pdf
327.3 KBPDF
-
[Marking Information] M KPM15N60FW.pdf
65.6 KBPDF
-
[Package Dimension] TO-220ISW PKG.pdf
110.5 KBPDF
-
[Packing Information] TO-220ISW Packing.pdf
185.1 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KPM15N60FW-U/H | Active | No | Yes | Yes | TO-220ISW | Taping | 45 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
