High Voltage MOSFET
KPM11N60FW
NEW

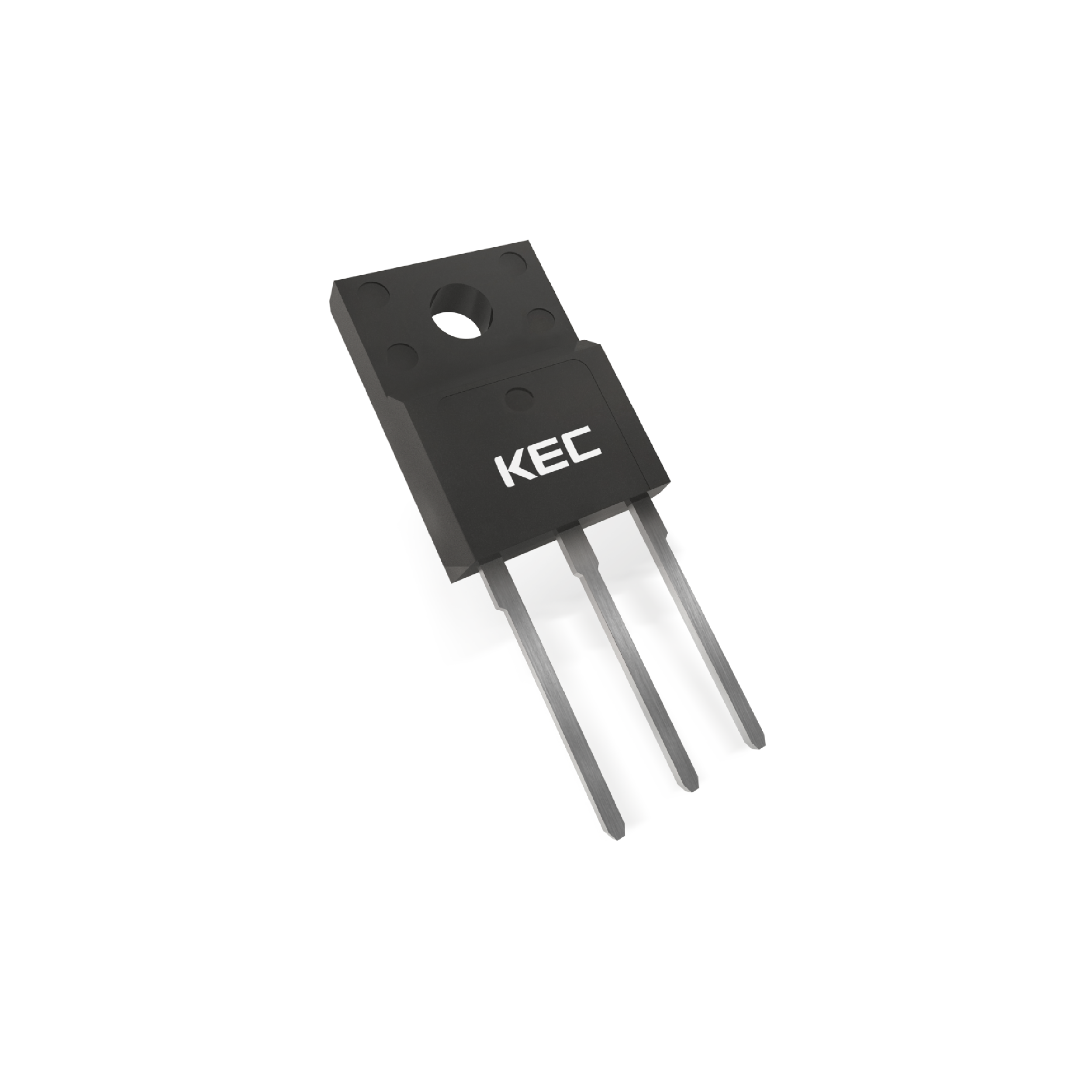

Super Junction MOSFETs, TO-220ISW, 600V, 11A
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast switching time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using switching mode power supplies.
| Item No | KPM11N60FW |
|---|---|
| Status | New |
| AEC-Q | N |
| Package | TO-220ISW |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 11 |
| PD[W] | 36.8 |
| RDS(ON)@10V[Ω] | 0.38 |
| Qg [nC] | 24 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 850 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KPM11N60FW.pdf
430.2 KBPDF
-
[Marking Information] M KPM11N60FW.pdf
65.4 KBPDF
-
[Package Dimension] TO-220ISW PKG.pdf
110.5 KBPDF
-
[Packing Information] TO-220ISW Packing.pdf
185.1 KBPDF
