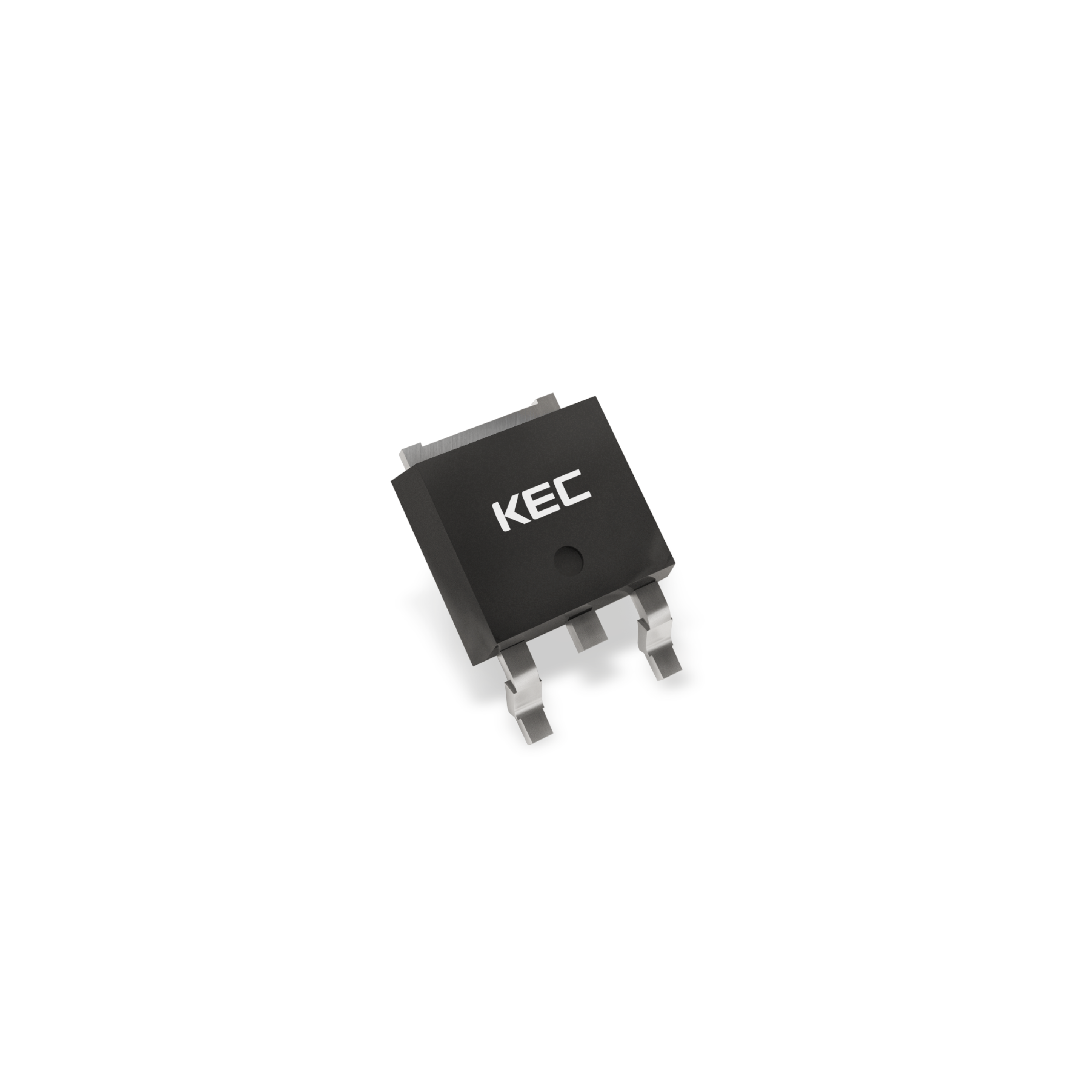

High Voltage MOSFET
KPM11N60D
Super Junction MOSFETs, DPAK(1), 600V, 11A
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast switching time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using switching mode power supplies.
| Item No | KPM11N60D |
|---|---|
| Package | DPAK(1) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 11 |
| PD[W] | 78.1 |
| RDS(ON)@10V[Ω] | 0.38 |
| Qg [nC] | 24 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 850 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KPM11N60D.pdf
825.8 KBPDF
-
[Marking Information] M KPM11N60D.pdf
173.6 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
