Zener Diode
Z8W37V
AUTOMOTIVE QUALIFIEDDISCONTINUED

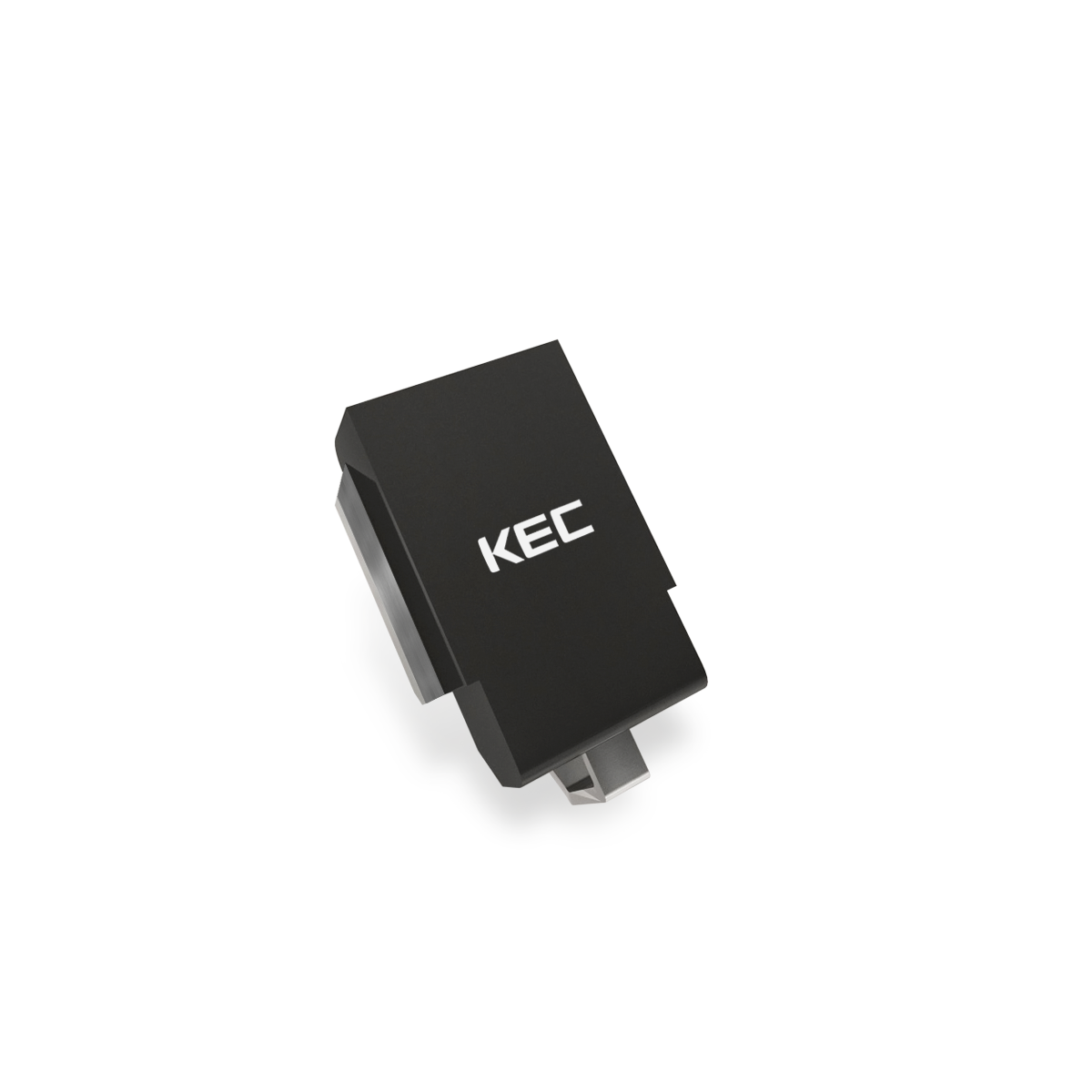

Power Zener, DO-218, 8000mW, 37V
Application
· Automotive - Powertrain Alternator
Features
· Excellent clamp voltage characteristics that protect electronic system from any kind of surge
· High surge power withstanding capabilities that absorb load dump surge
· Excellent surge responsibility for steep surge absorption
· Surface mount type is available for easy applications
| Item No | Z8W37V |
|---|---|
| Status | Discontinued |
| AEC-Q | Y |
| Package | DO-218 |
| PD[mW] | 8000 |
| VZ_MIN[V] | 34 |
| VZ_TYP[V] | 37 |
| VZ_MAX[V] | 40 |
