Schottky Barrier Diode
MBRF20U200

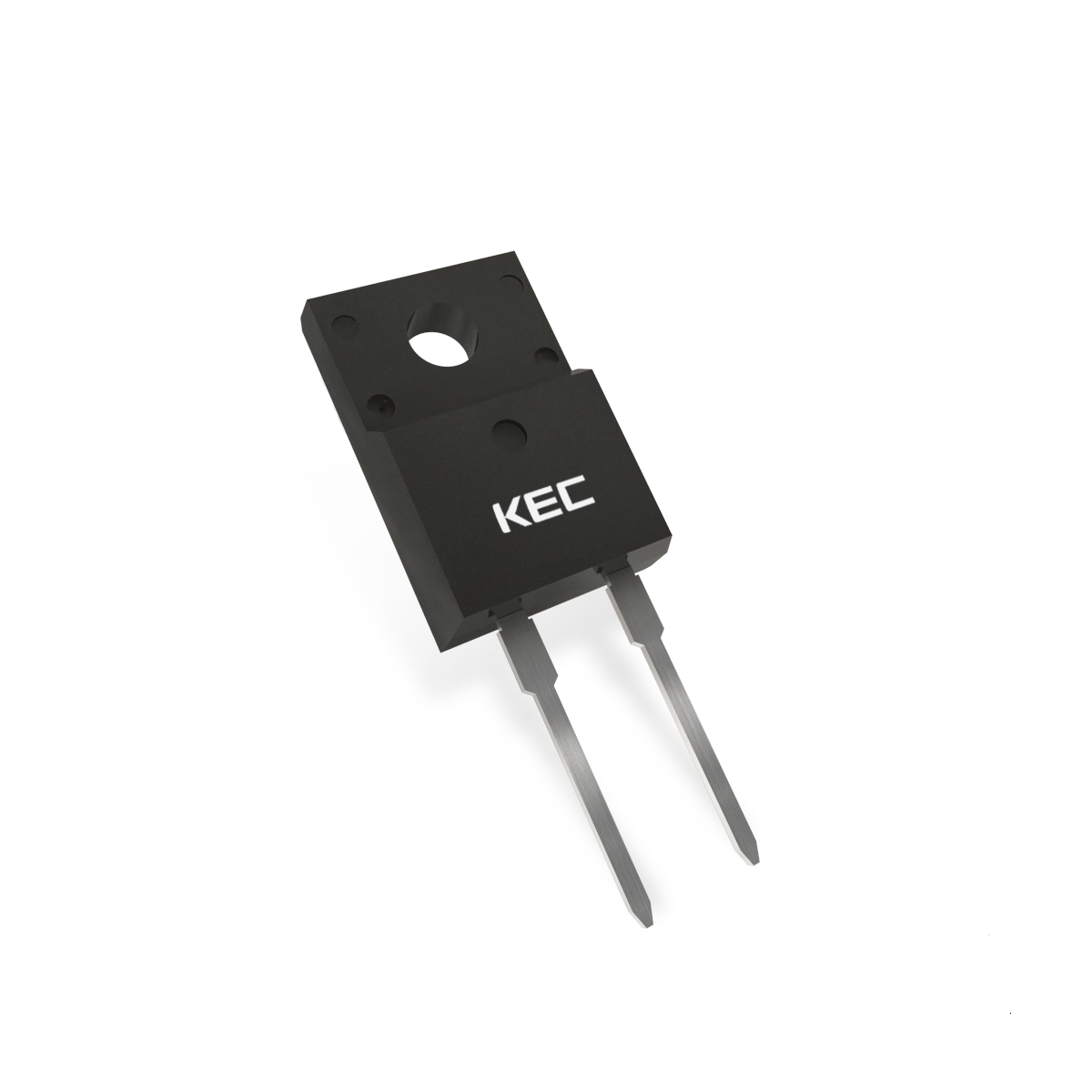

Power Schottky Barrier Diode, TO-220IS(2P), 200V, 20A
Application
· Consumer - LCD/OLED TV SMPS
· Industrial - UPS, Server Power
· Industrial - Automation MFP(Multi Function Printer)
Features
· Average Output Rectified Current : IO= 20A.
· Repetitive Peak Reverse Voltage : VRRM= 200V
· Fast Reverse Recovery Time : trr=35ns.
| Item No | MBRF20U200 |
|---|---|
| Package | TO-220IS(2P) |
| VR[V] | 200 |
| IO[A] | 20 |
| VFM_MAX[V] | 0.95 |
| IR_MAX[uA] | 100 |
Product Datasheet
-
[Product Datasheet] MBRF20U200.pdf
562.2 KBPDF
-
[Package Dimension] TO-220IS(2P) PKG.pdf
419.4 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| MBRF20U200-U/PF | Active | No | Yes | No | TO-220IS(2P) | Taping | 50 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
