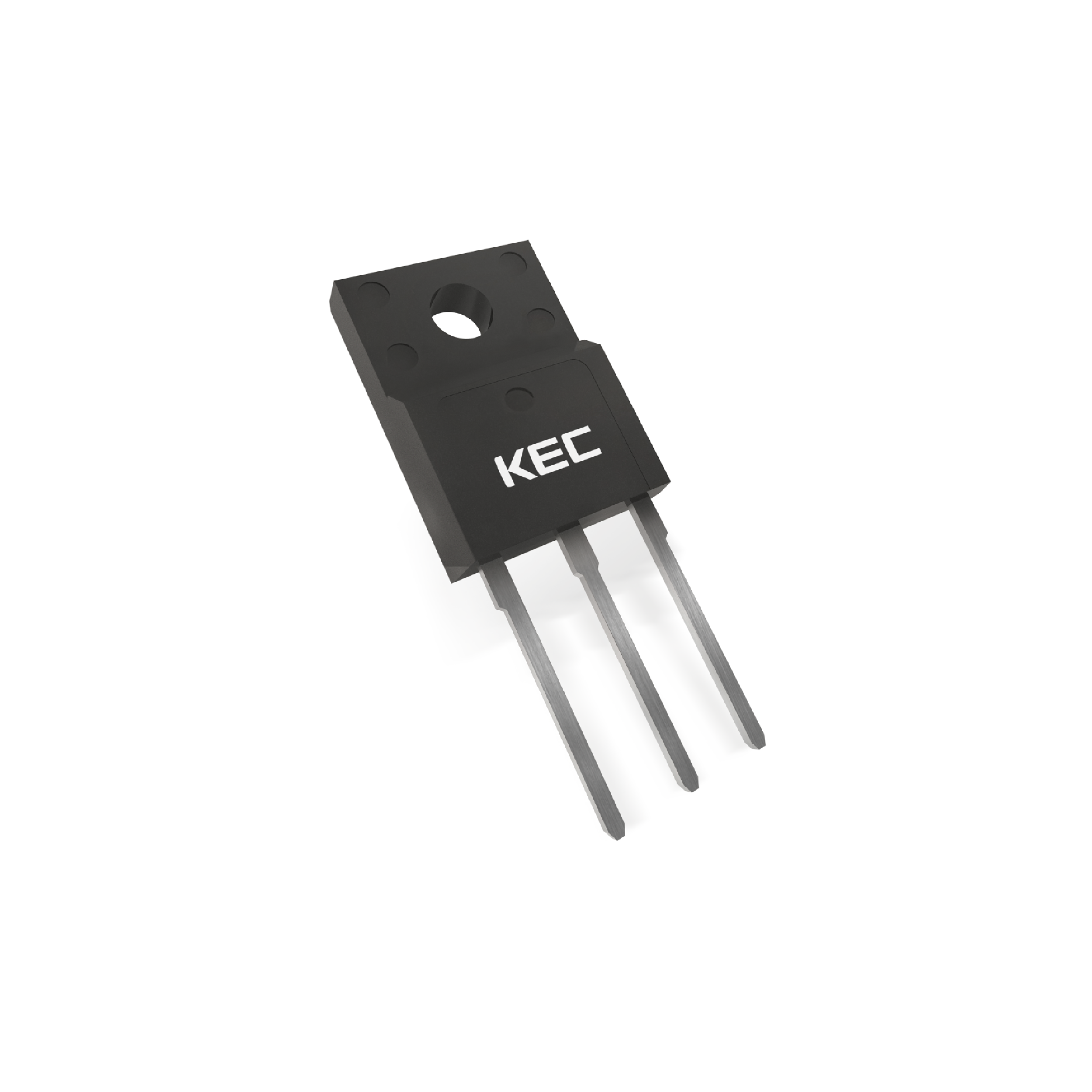

High Voltage MOSFET
KP190N60FWM3ZA
Super Junction MOSFETs, TO-220ISW, 600V, 190mΩ
Gate Resistance 19Ω
Application
· PFC Stages
· Resonant switching stages
· Fly Back converters
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· VDSS=600V, ID=20A
· Drain-Source ON Resistance:
RDS(ON)(MAX)=190mΩ @ VGS=10V
· Qg(typ.)=33nC @ VGS=10V
· Excellent ESD robustness > 2kV(HBM)
| Item No | KP190N60FWM3ZA |
|---|---|
| Package | TO-220ISW |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 20 |
| PD[W] | 59.5 |
| RDS(ON)@10V[Ω] | 0.19 |
| Qg [nC] | 33 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 1440 |
| ESD DIODE | Y |
Product Datasheet
-
[Product Datasheet] KP190N60FWM3ZA_R0.pdf
843.2 KBPDF
-
[Package Dimension] TO-220ISW PKG.pdf
110.5 KBPDF
-
[Packing Information] TO-220ISW Packing.pdf
185.1 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KP190N60FWM3ZA | - | - | - | - | - | - | - | - | - | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
