High Voltage MOSFET
KP280N60FM3Z
New

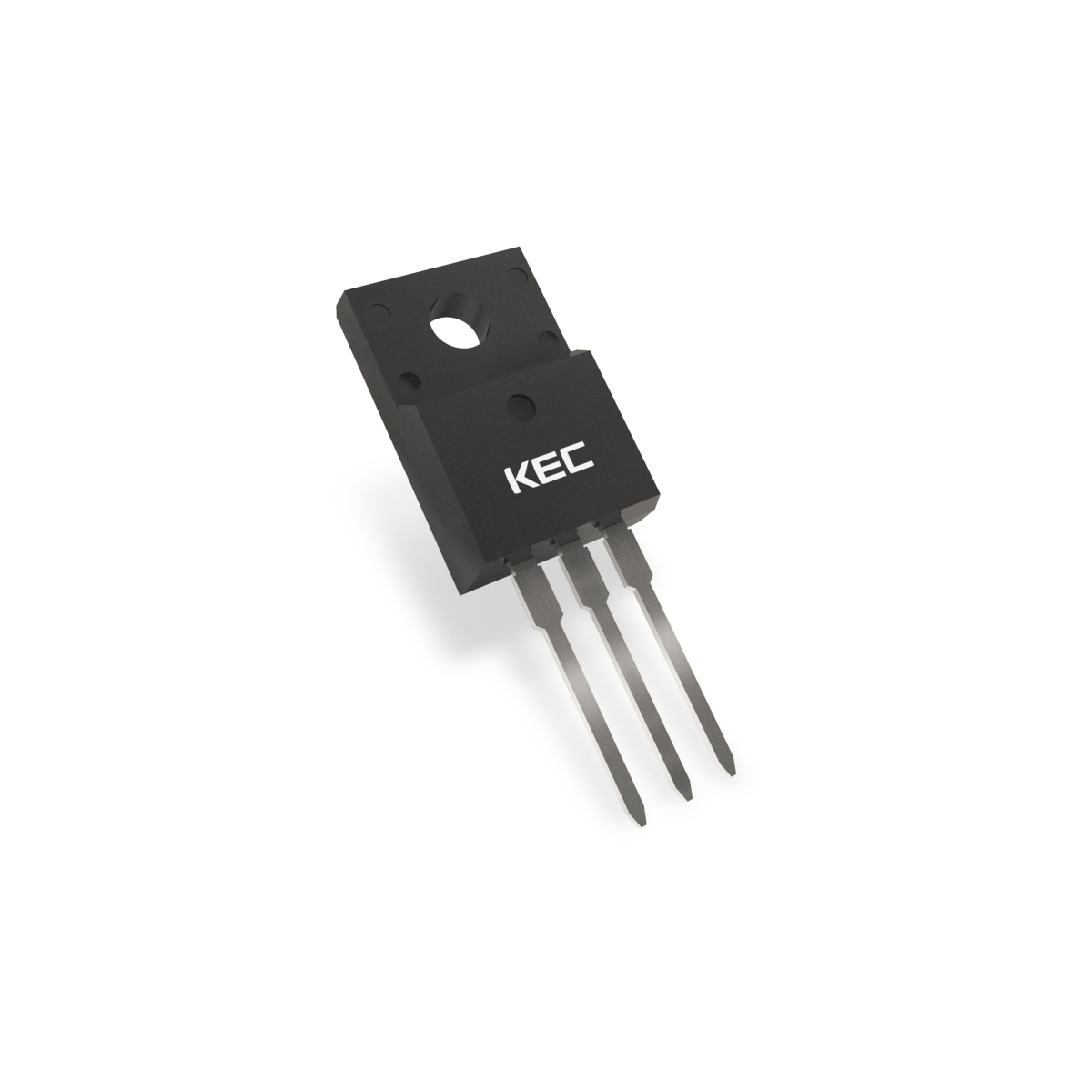

Super Junction MOSFETs, TO-220IS(1), 600V, 280mΩ
Application
· PFC Stages
· Resonant switching stages
· Fly Back converters
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· VDSS=600V, ID=15A
· Drain-Source ON Resistance:
RDS(ON)(MAX)=280mΩ @ VGS=10V
· Qg(typ.)=23nC @ VGS=10V
· Excellent ESD robustness > 2kV(HBM)
| Item No | KP280N60FM3Z |
|---|---|
| Package | TO-220IS(1) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 15 |
| PD[W] | 50 |
| RDS(ON)@10V[Ω] | 0.28 |
| Qg [nC] | 23 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 990 |
| ESD DIODE | Y |
Product Datasheet
-
[Product Datasheet] KP280N60FM3Z_R0.pdf
571.2 KBPDF
-
[Marking Information] M KP280N60FM3Z_R0.pdf
108.6 KBPDF
-
[Package Dimension] TO-220IS(1) PKG.pdf
65.9 KBPDF
-
[Packing Information] TO-220IS(1) Packing.pdf
83.2 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KP280N60FM3Z-U/PF | New | No | Yes | No | TO-220IS(1) | Taping | 50 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
