High Voltage MOSFET
KP190N60FM3Z
NEW

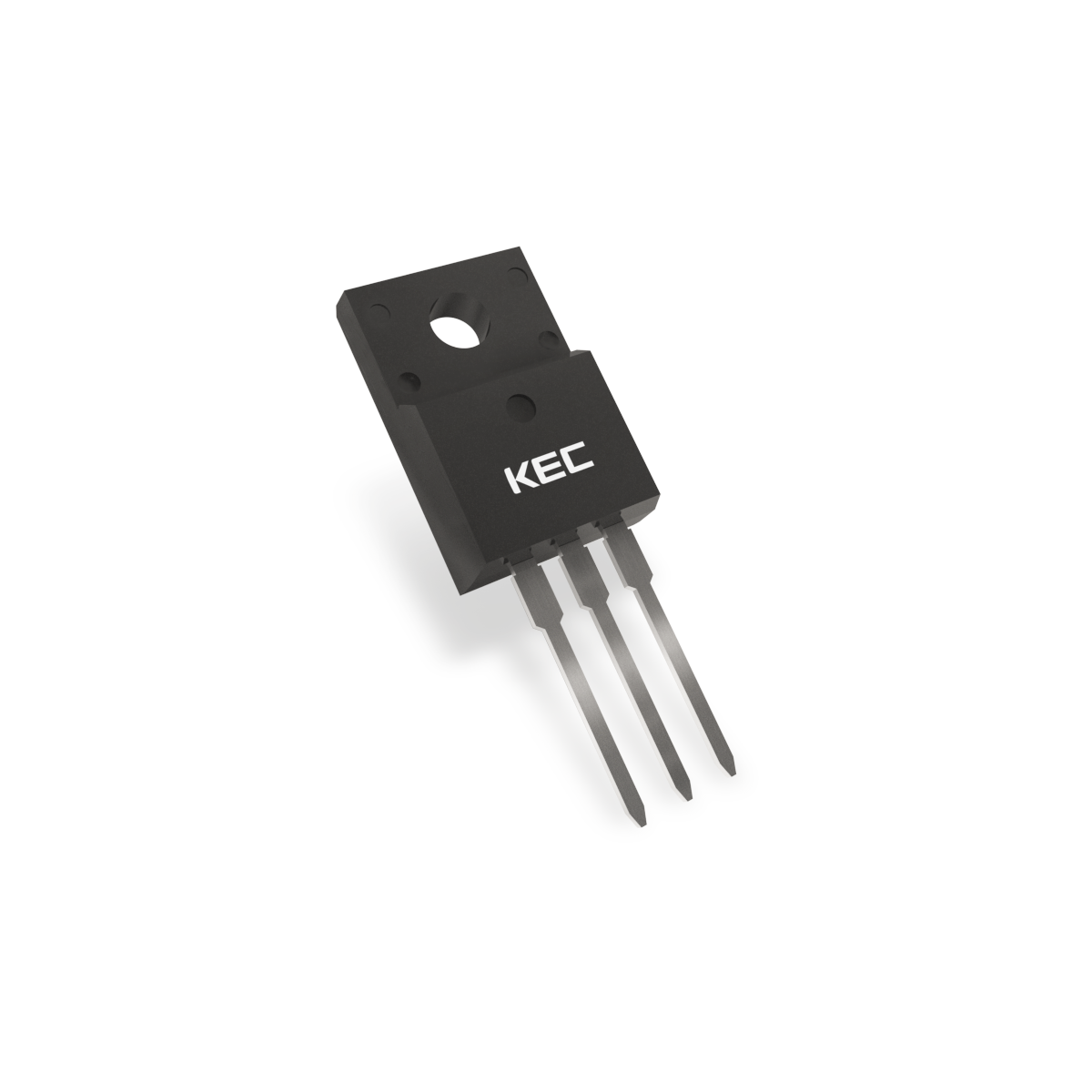

Super Junction MOSFETs, TO-220IS(1), 600V, 190mΩ
Application
· PFC Stages
· Resonant switching stages
· Fly Back converters
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· VDSS=600V, ID=20A
· Drain-Source ON Resistance:
RDS(ON)(MAX)=190mΩ @ VGS=10V
· Qg(typ.)=33nC @ VGS=10V
· Excellent ESD robustness > 2kV(HBM)
| Item No | KP190N60FM3Z |
|---|---|
| Status | NEW |
| AEC-Q | N |
| Package | TO-220IS(1) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 20 |
| PD[W] | 59.5 |
| RDS(ON)@10V[Ω] | 0.19 |
| Qg [nC] | 33 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 1440 |
| ESD DIODE | Y |
Product Datasheet
-
[Product Datasheet] KP190N60FM3Z_R0.pdf
544.3 KBPDF
-
[Marking Information] M KP190N60FM3Z_R0.pdf
107.2 KBPDF
-
[Package Dimension] TO-220IS(1) PKG.pdf
65.9 KBPDF
-
[Packing Information] TO-220IS(1) Packing.pdf
83.2 KBPDF
