IGBTs

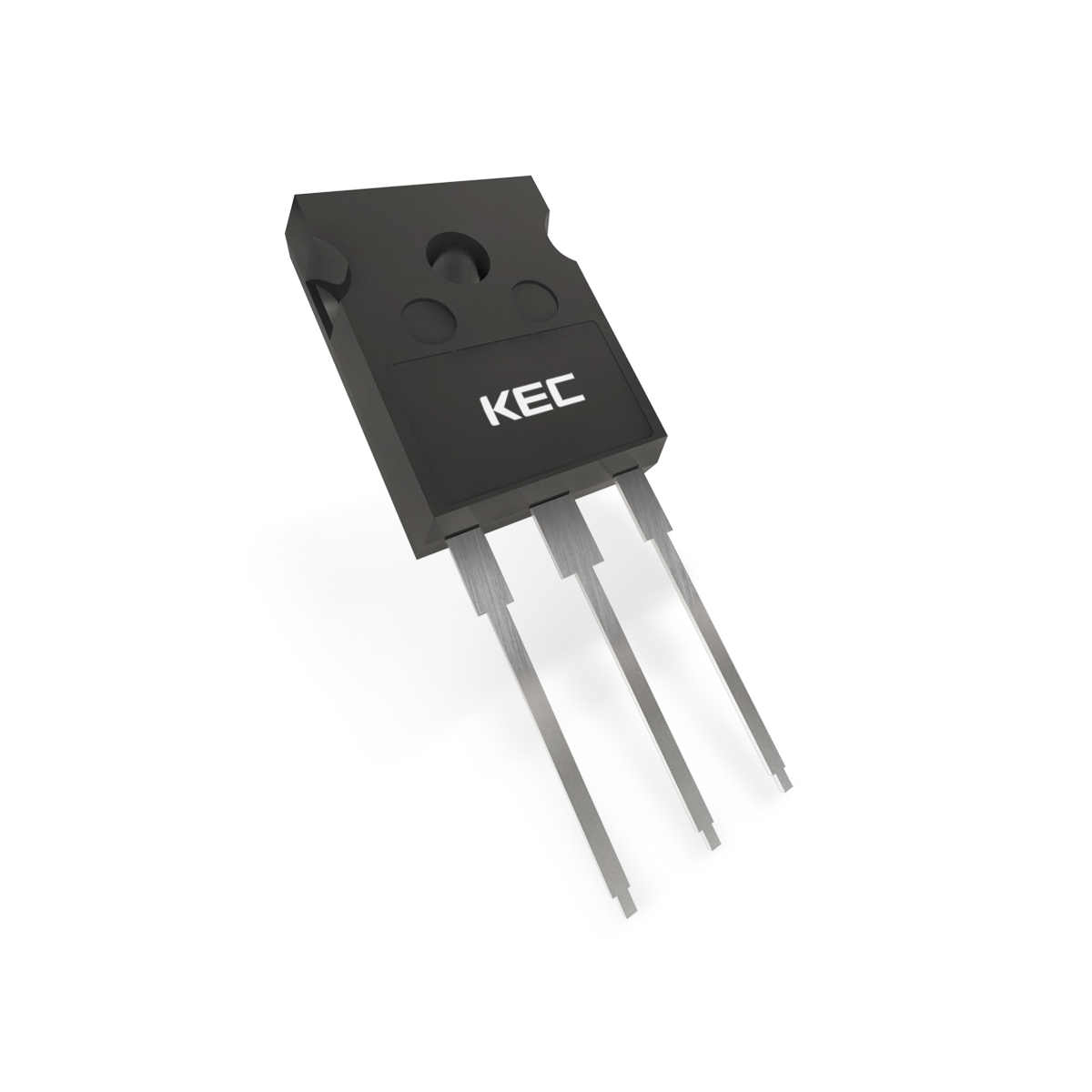

KGF60N65KDFA
New
Field Stop Trench IGBTs, TO-247, 650V, 60A
Application
Motor drivers, General Inverters, UPS, DPG
Features
· High Speed Switching
· High Ruggedness, Temperature Stable Behavior
· 650V Breakdown Voltage
· Maximum Junction Temperature : 175℃
· Short Circuit Withstand Times > 5μs
· Extremely Enhanced Avalanche Capability
· HBM Class 2
| Item No | KGF60N65KDFA |
|---|---|
| Package | TO-247 |
| Built in Diode | Y |
| VCES[V] | 650 |
| VGES[V] | ±20 |
| IC[A]@25℃ | 120 |
| IC[A]@100℃ | 60 |
| ICM[A] | 240 |
| IF[A]@25℃ | 120 |
| PD[W]@25℃ | 384.6 |
| TJ[℃] | 175 |
| Min VGE(th)[V]@25℃ | 4.5 |
| Max VGE(th)[V]@25℃ | 6.5 |
| Typ VCE(sat)[V]@25℃ | 1.74 |
| Typ VF[V]@25℃ | 1.55 |
Product Datasheet
-
[Product Datasheet] KGF60N65KDFA_R0.pdf
926.3 KBPDF
-
[Package Dimension] TO-247 PKG_R2.pdf
403.5 KBPDF
-
[Packing Information] TO-247 Packing.pdf
923 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KGF60N65KDFA-U/H | New | No | Yes | Yes | TO-247 | Taping | 30 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
