High Voltage MOSFET
KP580N60DM3Z
New

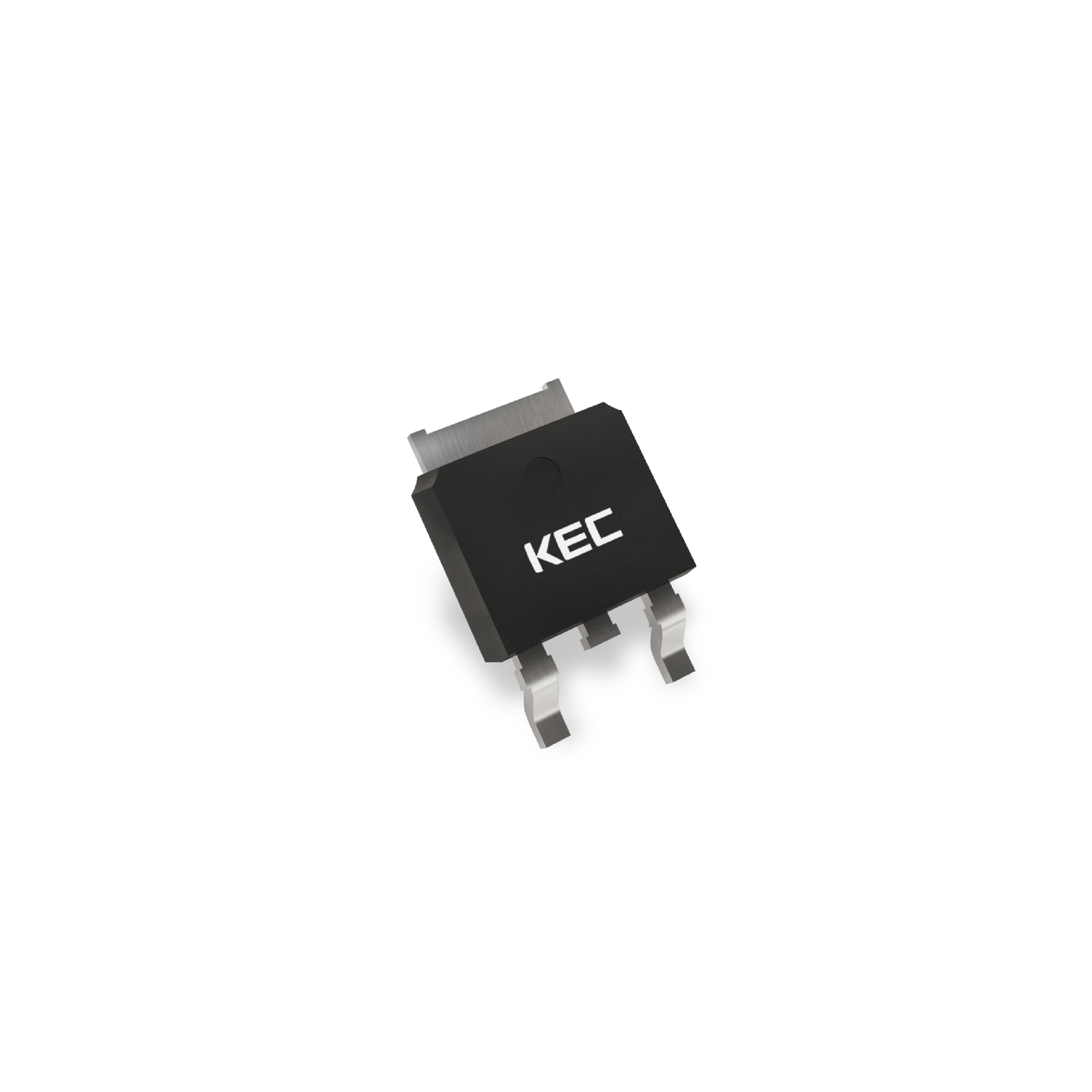

Super Junction MOSFETs, DPAK(3), 600V, 580mΩ
Application
· PFC Stages
· Resonant switching stages
· Fly Back converters
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· VDSS=600V, ID=8A
· Drain-Source ON Resistance:
RDS(ON)(MAX)=580mΩ @ VGS=10V
· Qg(typ.)=12nC @ VGS=10V
· Excellent ESD robustness > 2kV(HBM)
| Item No | KP580N60DM3Z |
|---|---|
| Package | DPAK(3) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 8 |
| PD[W] | 56.8 |
| RDS(ON)@10V[Ω] | 0.58 |
| Qg [nC] | 12 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 490 |
| ESD DIODE | Y |
Product Datasheet
-
[Product Datasheet] KP580N60DM3Z_R0.pdf
848.4 KBPDF
-
[Marking Information] M KP580N60DM3Z_R0.pdf
207.1 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(3) Packing.pdf
1.5 MBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KP580N60DM3Z-RTF/HQ | New | No | Yes | Yes | DPAK(3) | Taping | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
