Application
Motor drivers, General Inverters, UPS
Features
· High Speed Switching
· High Ruggedness, Temperature Stable Behavior
· 650V Breakdown Voltage
· Maximum Junction Temperature : 175℃
· Short Circuit Withstand Times > 5μs
· Extremely Enhanced Avalanche Capability
· HBM Class 2

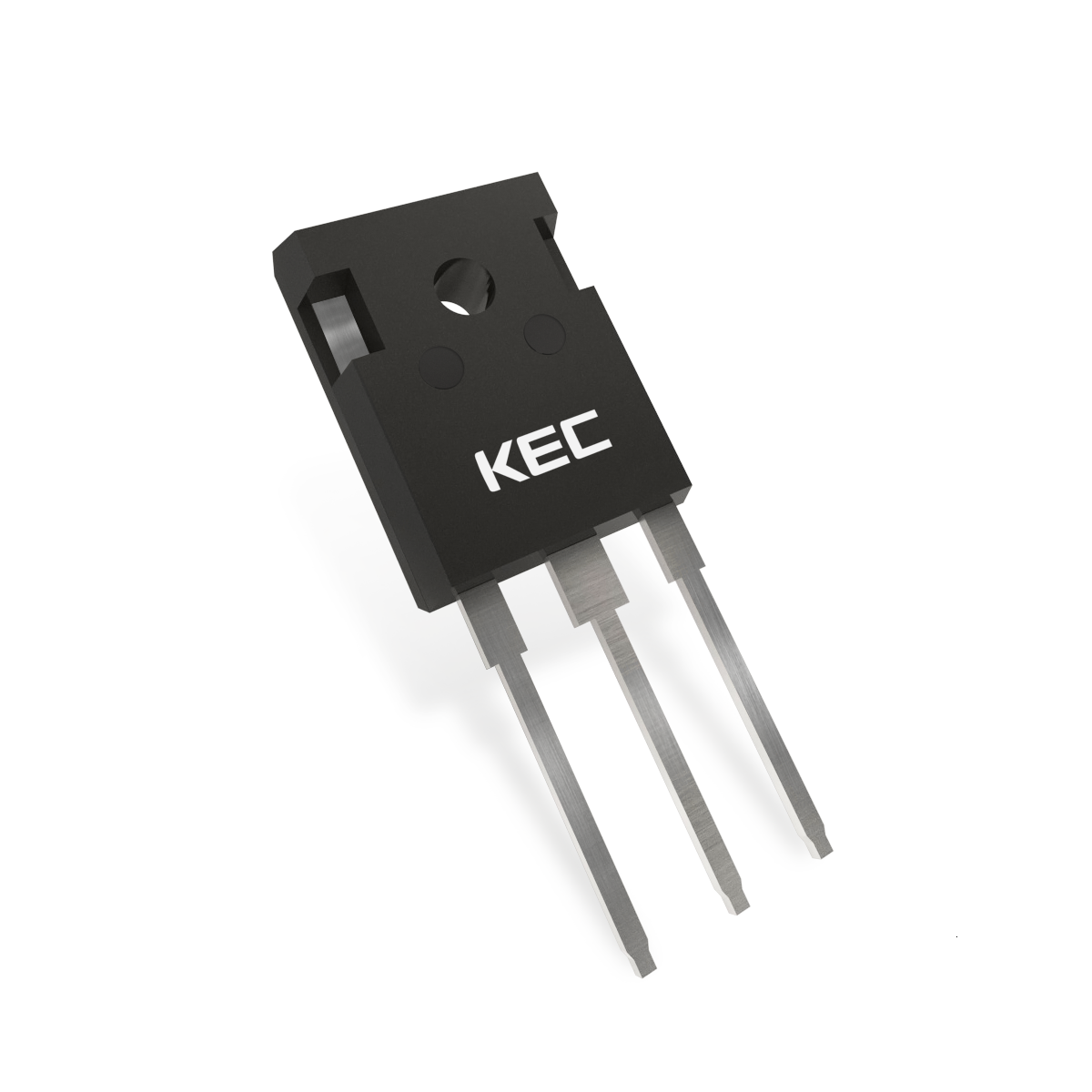

Item No | KGF75N65KDFA |
---|---|
Package | TO-247 |
Built in Diode | Y |
VCES[V] | 650 |
VGES[V] | ±20 |
IC[A]@25℃ | 150 |
IC[A]@100℃ | 75 |
ICM[A] | 225 |
IF[A]@25℃ | 150 |
PD[W]@25℃ | 517.2 |
TJ[℃] | 175 |
Min VGE(th)[V]@25℃ | 4.5 |
Max VGE(th)[V]@25℃ | 6.5 |
Typ VCE(sat)[V]@25℃ | 1.75 |
Typ VF[V]@25℃ | 1.7 |
Product Datasheet
-
[Product Datasheet] KGF75N65KDFA_R0.pdf
950.5 KBPDF
-
[Package Dimension] TO-247 PKG_R2.pdf
403.5 KBPDF
-
[Packing Information] TO-247 Packing.pdf
923 KBPDF
