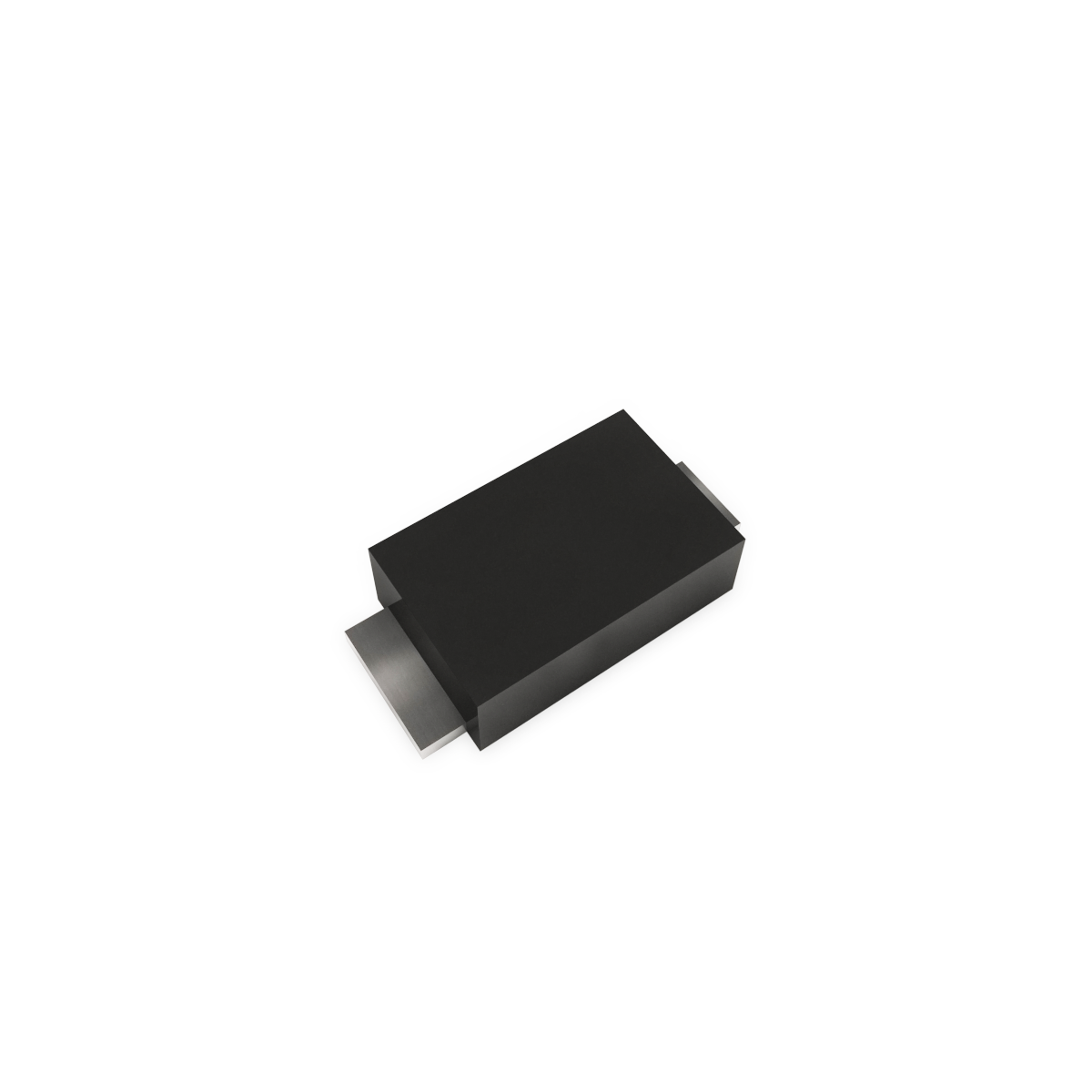

Schottky Barrier Diode
USFB16LA
New
Small Signal Schottky Barrier Diode, USF, 60V, 1A
Application
· Switching Power Supply
· Reversed Battery Connection Protection
· DC/DC Converter
· Cellular Phones
Features
· Low Profile Surface Mount Package
· Low Power Loss, High Efficiency
· For Use in Low Voltage and Low Reverse Current,
High Frequency inverters, Free Wheeling, and Polarity
Protection Applications
| Item No | USFB16LA |
|---|---|
| Package | USF |
| VR[V] | 60 |
| IO[A] | 1 |
| VFM_MAX[V] | 0.7 |
| IR_MAX[uA] | 50 |
Product Datasheet
-
[Product Datasheet] USFB16LA_R0.pdf
534.8 KBPDF
-
[Package Dimension] USF PKG.pdf
58 KBPDF
-
[Packing Information] USF Packing.pdf
1 MBPDF
-
[Recommended Pad Dimension] USF RPD.pdf
15.9 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| USFB16LA-RTK/H | New | No | Yes | Yes | USF | Taping | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
