Schottky Barrier Diode
KDR730EL2A
Small Signal Schottky Barrier Diode, ELP-2A, 30V, 0.1A
Application
· Low voltage rectification
· High efficiency DC-to-DC conversion
· Switch mode power supply
· Inverse polarity protection
· Low power consumption applications
Features
· Low Forward Voltage
· High Reliability
· Small Package
| Item No | KDR730EL2A |
|---|---|

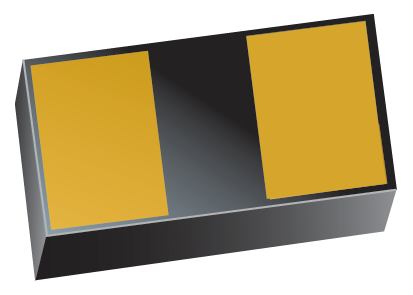

| Package | ELP-2A |
| VR[V] | 30 |
| IO[A] | 0.1 |
| VFM_MAX[V] | 0.46 |
| IR_MAX[uA] | 0.3 |
Product Datasheet
-
[Product Datasheet] KDR730EL2A_R0.pdf
851.2 KBPDF
-
[Package Dimension] ELP-2A PKG.pdf
56.8 KBPDF
-
[Packing Information] ELP-2A Packing.pdf
1.6 MBPDF
-
[Recommended Pad Dimension] ELP-2A RPD.pdf
326.2 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KDR730EL2A | - | - | - | - | - | - | - | - | - | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
