Protection Diode

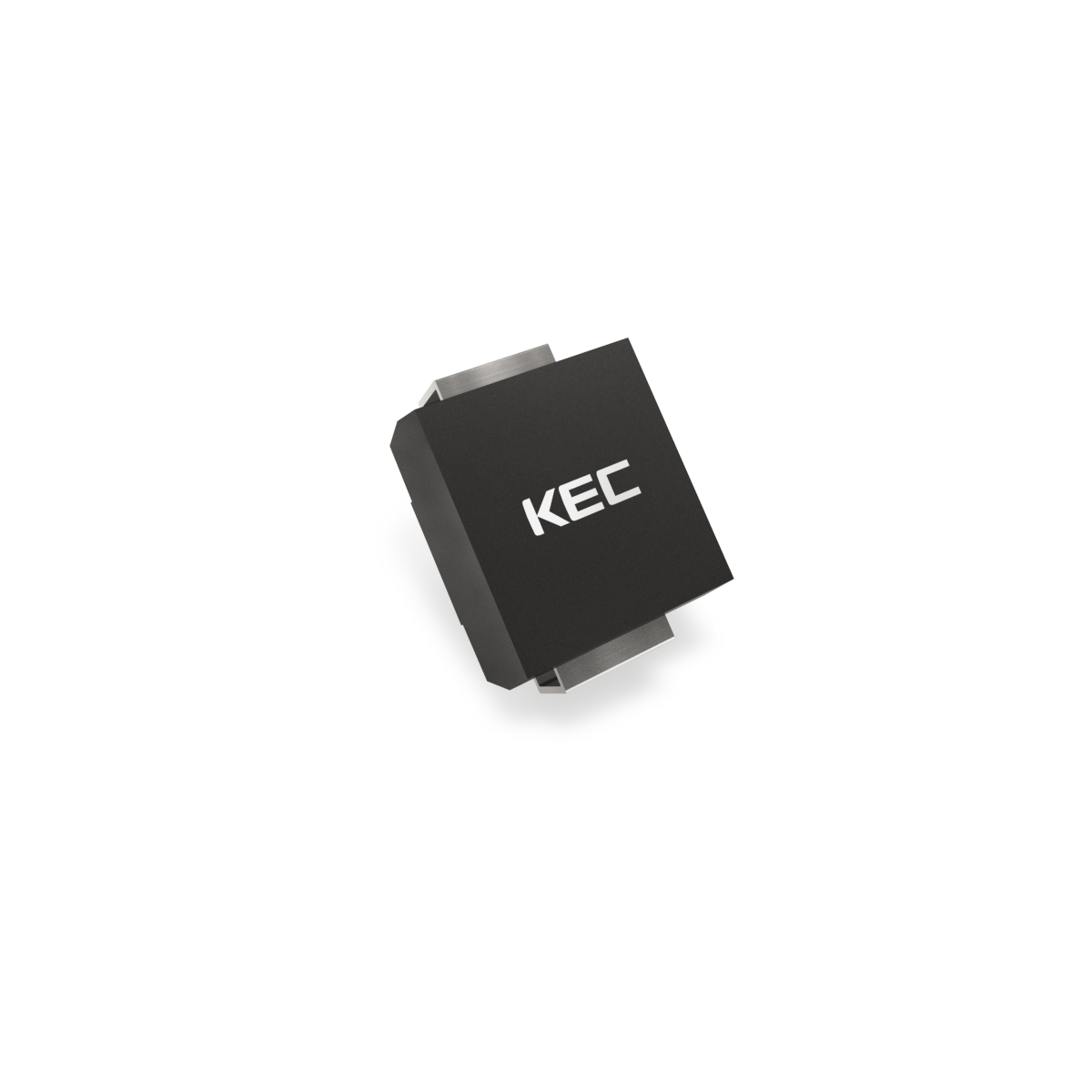

PG36LSSMB
AUTOMOTIVE QUALIFIEDNEW
General Purpose TVS, SMB, 36V, 2000pF
Application
· Motor control
· Lighting(Inside cabin, Head lamps, ECU)
· Engine cooling system
· Infotainment and navigation
· Camera
· On-board battery charger
· Battery Management system(BMS)
Features
· Motor control
· Inside cabin, Headlamps(lighting)
· ECU(lighting)
· Infotainment and navigation
· On-board battery charger
· Power line
| Item No | PG36LSSMB |
|---|---|
| Status | NEW |
| AEC-Q | Y |
| Package | SMB |
| PPK[W] | 1500 |
| IPP[A] | 25.8 |
| VRWM[V] | 36 |
| IR_MAX[uA] | 0.1 |
| VC_MAX[V] | 58.1 |
| CT_MAX[㎊] | 2000 |
Product Datasheet
-
[Product Datasheet] PG36LSSMB_R0.pdf
1.4 MBPDF
-
[Package Dimension] SMB PKG.pdf
129.3 KBPDF
-
[Packing Information] SMB Packing.pdf
95.2 KBPDF
-
[Recommended Pad Dimension] SMB RPD.pdf
331.8 KBPDF
