IGBTs
KGF40N65KDCA
New

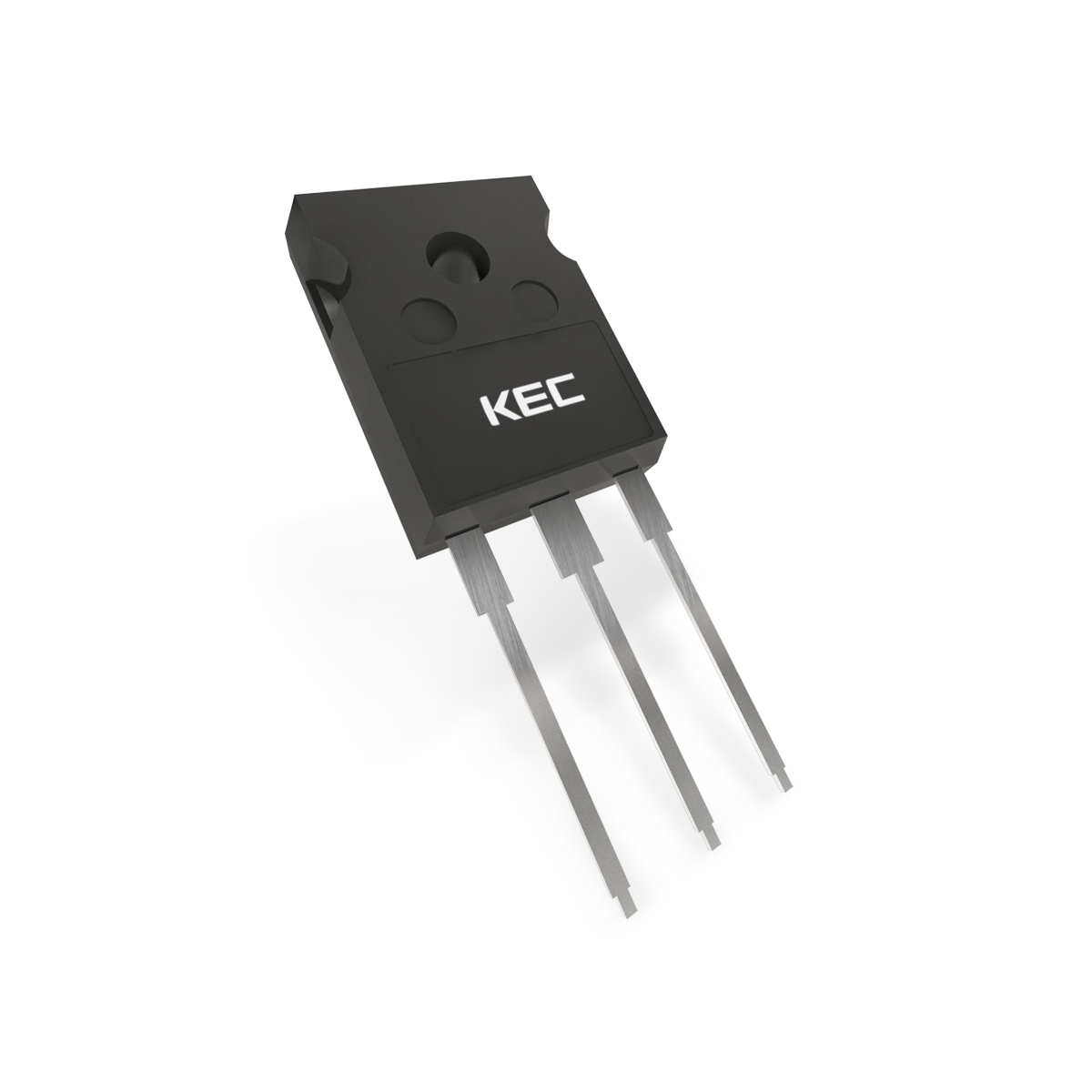

Field Stop Trench IGBTs, TO-247, 650V, 40A
Application
· Motor drivers, General Inverters
Features
· High speed switching
· High Ruggedness, Temperature Stable Behavior
· 650V Breakdown Voltage
· Maximum Junction Temperature:175℃
· Short Circuit Withstand Times > 10㎲
· Extremely Enhanced Avalanche Capability
| Item No | KGF40N65KDCA |
|---|---|
| Package | TO-247 |
| Built in Diode | Y |
| VCES[V] | 650 |
| VGES[V] | ±20 |
| IC[A]@25℃ | 80 |
| IC[A]@100℃ | 40 |
| ICM[A] | 120 |
| IF[A]@25℃ | 80 |
| PD[W]@25℃ | 187 |
| TJ[℃] | 175 |
| Min VGE(th)[V]@25℃ | 5 |
| Max VGE(th)[V]@25℃ | 7.5 |
| Typ VCE(sat)[V]@25℃ | 1.65 |
| Typ VF[V]@25℃ | 1.98 |
Product Datasheet
-
[Product Datasheet] KGF40N65KDCA_R0.pdf
3 MBPDF
-
[Marking Information] M KGF40N65KDCA_R0.pdf
362.3 KBPDF
-
[Package Dimension] TO-247 PKG_R2.pdf
403.5 KBPDF
-
[Packing Information] TO-247 Packing.pdf
923 KBPDF
