High Voltage MOSFET
KP125N60FM3
NEW

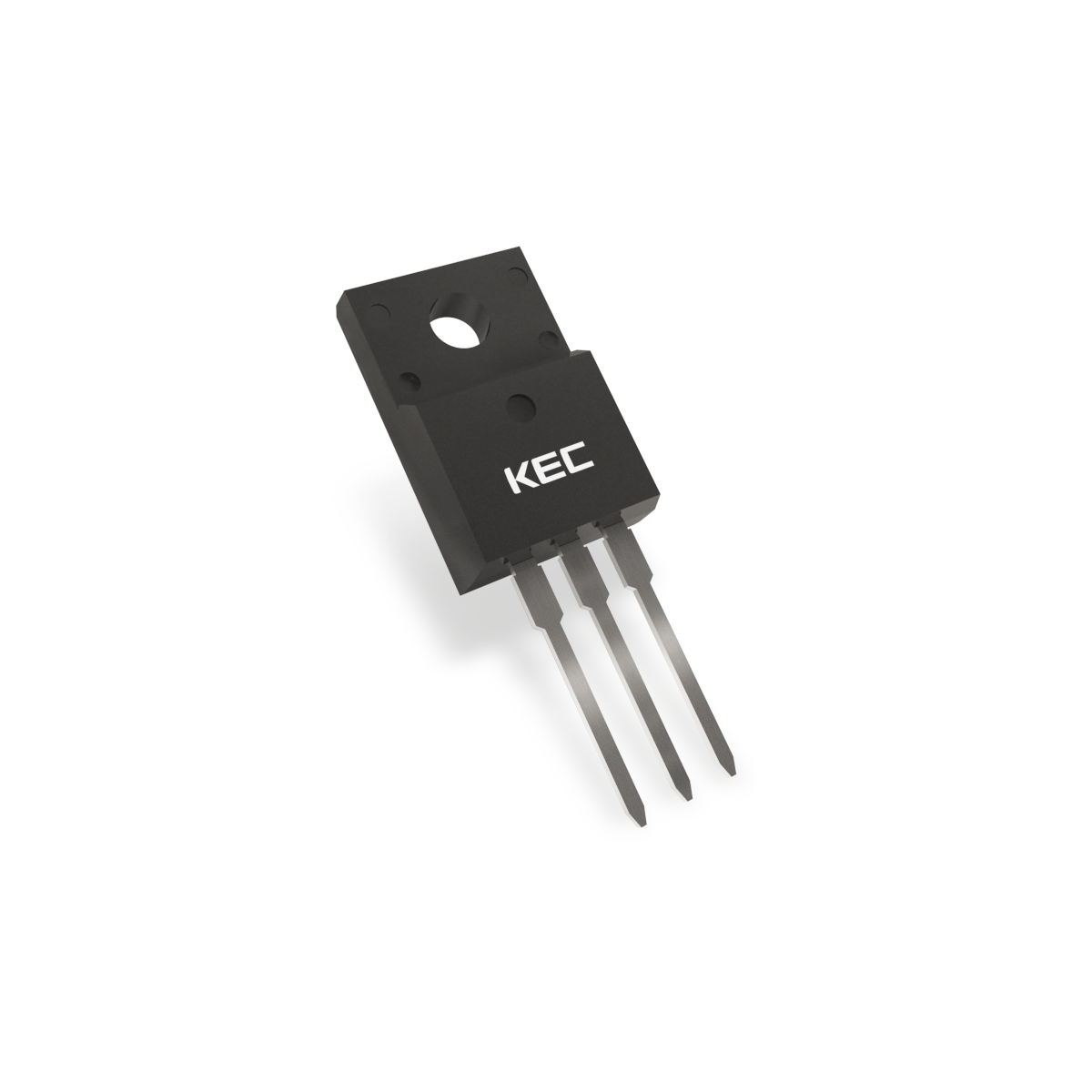

Super Junction MOSFETs, TO-220IS(1), 600V, 125mΩ
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast Switching Time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using Switching mode power supplie
| Item No | KP125N60FM3 |
|---|---|
| Status | NEW |
| AEC-Q | N |
| Package | TO-220IS(1) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 30 |
| PD[W] | 66 |
| RDS(ON)@10V[Ω] | 0.125 |
| Qg [nC] | 47 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 2000 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KP125N60FM3_R0.pdf
541.1 KBPDF
-
[Marking Information] M KP125N60FM3_R0.pdf
158.1 KBPDF
-
[Package Dimension] TO-220IS(1) PKG.pdf
65.9 KBPDF
-
[Packing Information] TO-220IS(1) Packing.pdf
83.2 KBPDF
