High Voltage MOSFET

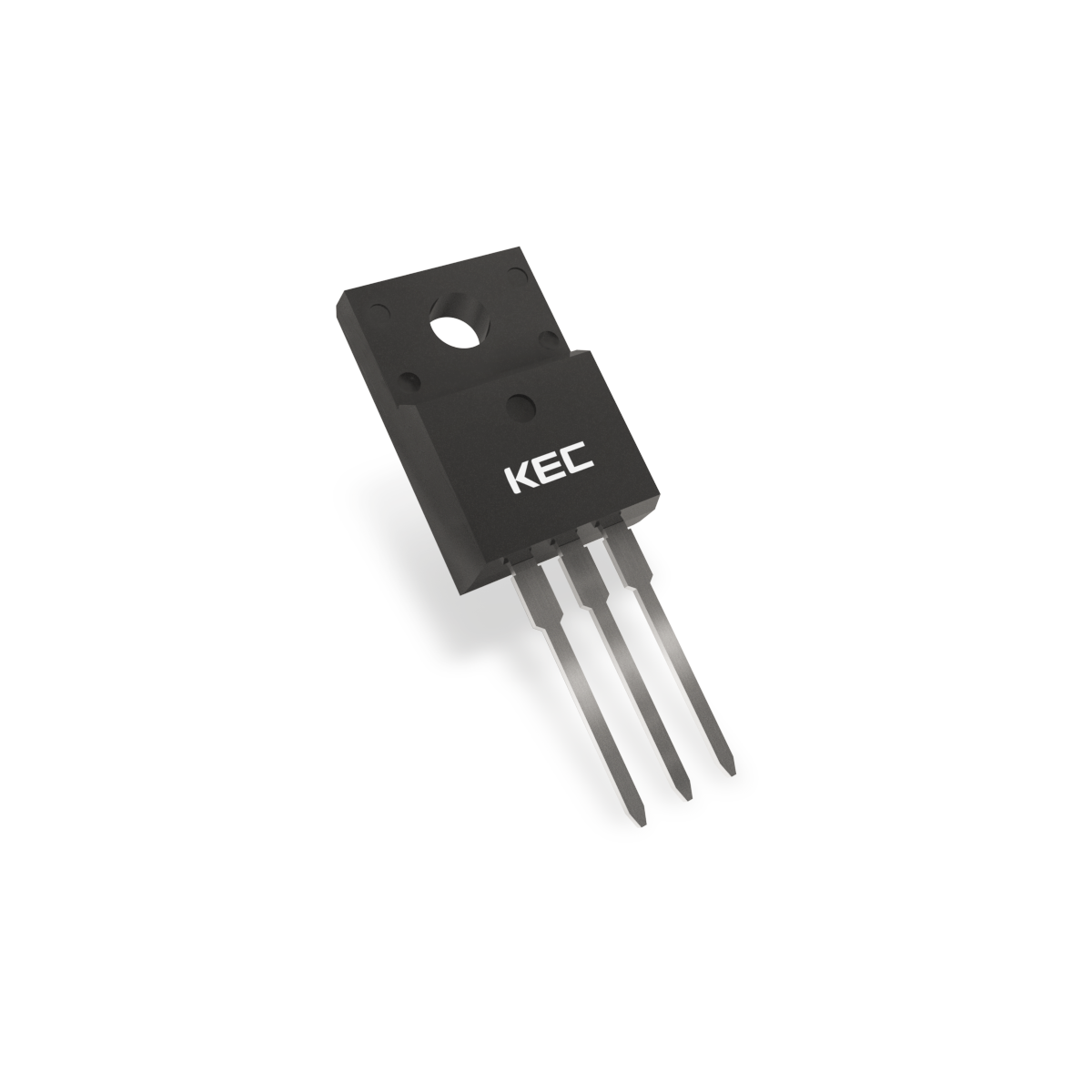

KP190N60FM3
New
Super Junction MOSFETs, TO-220IS(1), 600V, 190mΩ
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast Switching Time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using Switching mode power supplie
| Item No | KP190N60FM3 |
|---|---|
| Package | TO-220IS(1) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 20 |
| PD[W] | 59.5 |
| RDS(ON)@10V[Ω] | 0.19 |
| Qg [nC] | 31 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 1300 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KP190N60FM3_R0.pdf
548.3 KBPDF
-
[Marking Information] M KP190N60FM3_R0.pdf
158 KBPDF
-
[Package Dimension] TO-220IS(1) PKG.pdf
65.9 KBPDF
-
[Packing Information] TO-220IS(1) Packing.pdf
83.2 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KP190N60FM3-U/PF | New | No | Yes | No | TO-220IS(1) | Taping | 50 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
