High Voltage MOSFET
KP380N60DM3
NEW

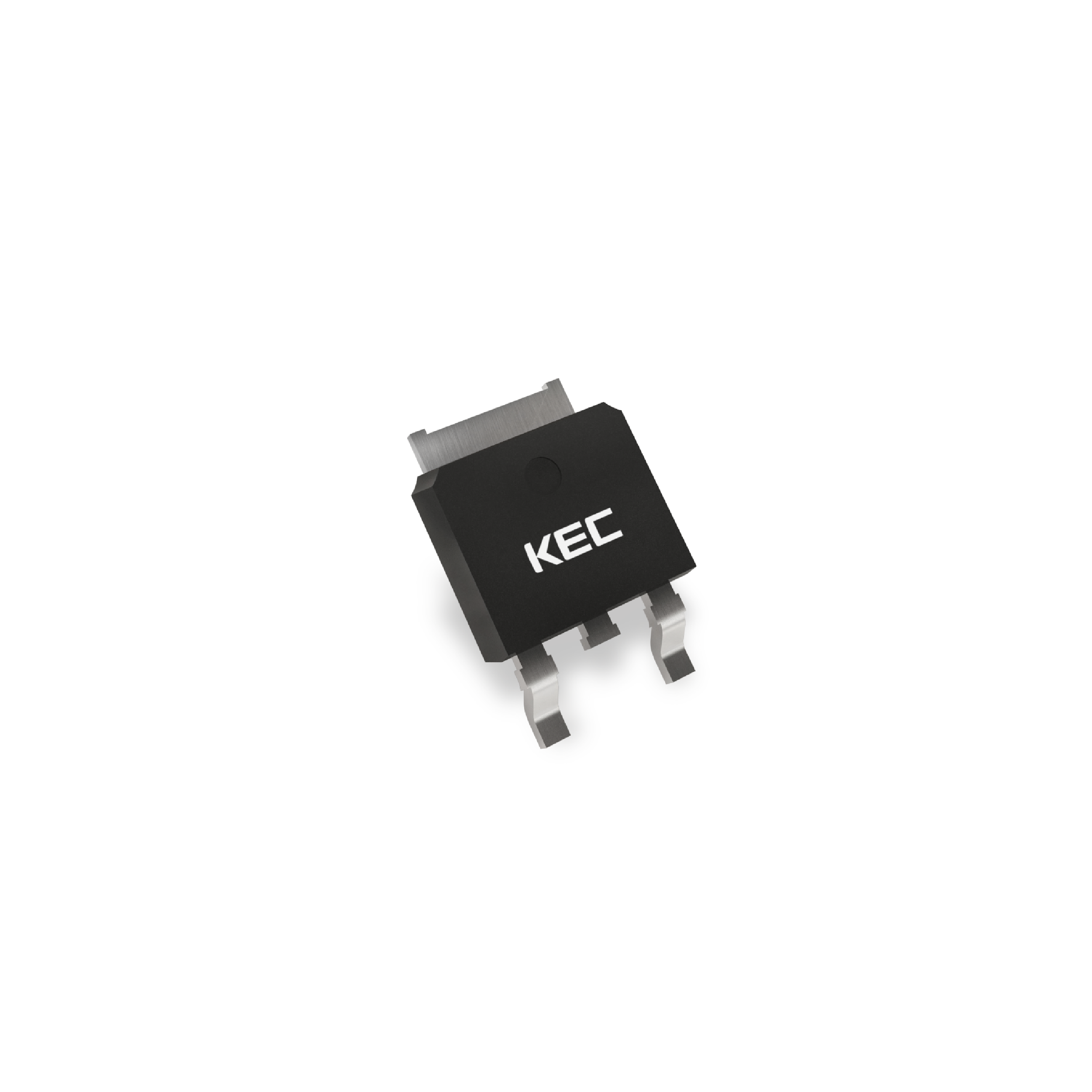

Super Junction MOSFETs, DPAK(3), 600V, 380mΩ
Application
· Power of PC, TV, Lighting, Adapter, Server and Telecom
Features
· Fast Switching Time
· Low on resistance, gate charge and EMI characteristics
· Suitable for using Switching mode power supplies
| Item No | KP380N60DM3 |
|---|---|
| Status | NEW |
| AEC-Q | N |
| Package | DPAK(3) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 11 |
| PD[W] | 78.1 |
| RDS(ON)@10V[Ω] | 0.38 |
| Qg [nC] | 17 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 680 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KP380N60DM3_R1.pdf
789.8 KBPDF
-
[Marking Information] M KP380N60DM3.pdf
183.1 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(3) Packing.pdf
1.5 MBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
