Schottky Barrier Diode

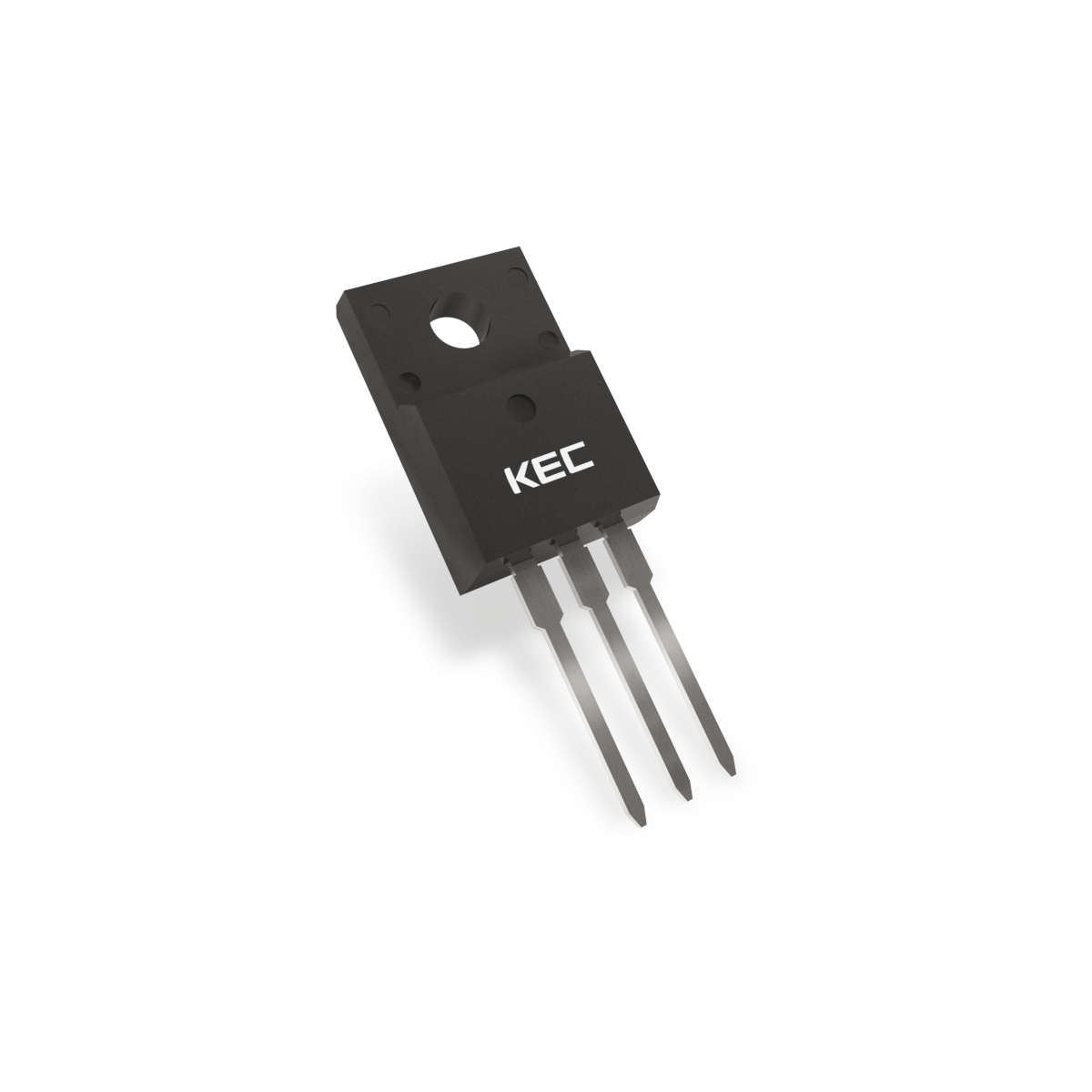

MBRF20U80CTA
New
Low Forward Voltage/Low Reverse Current
Application
· Switching Mode Power Supply
· Output Rectification
· General Purpose
· Free-Wheeling
· Power Inverter
Features
· Average Output Rectified current Io=20A
· Repetitive Peak Reverse Voltage VRRM= 80V
· Low Forward Voltage
· Low Reverse Current
| Item No | MBRF20U80CTA |
|---|---|
| Package | TO-220IS(1) |
| VR[V] | 80 |
| IO[A] | 20 |
| VFM_MAX[V] | 0.8 |
| IR_MAX[uA] | 0.6 |
Product Datasheet
-
[Product Datasheet] MBRF20U80CTA_R0.pdf
863.5 KBPDF
-
[Package Dimension] TO-220IS(1) PKG.pdf
65.9 KBPDF
-
[Packing Information] TO-220IS(1) Packing.pdf
83.2 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| MBRF20U80CTA-U/P | New | No | Yes | No | TO-220IS(1) | Taping | 50 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
