Transistor Array

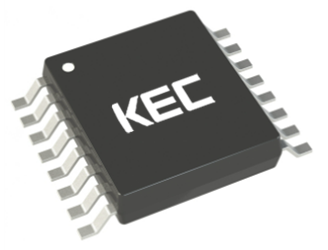

KID65003FT
Automotive QualifiedNew
7-CH Darlington Driver, TSSOP-16, 50V, 0.5A/ch
Application
· Relay Drivers
· LED Drivers
· Lamp Drivers
· Stepper Motor Drivers
· Line Drivers
· Logic Buffers
Features
· Output Current : 500mA max
· High Sustaining Voltage Outputs : 50V min
· Output Clamp Diodes
· Inputs Compatible with Various types of Logic
| Item No | KID65003FT |
|---|---|
| Package | TSSOP-16 |
| VCE_MAX[V] | 50 |
| IOUT_MAX[A/ch] | 0.5 |
| Output Type | Open Collector |
| Clamp Diode | O |
| Channel | 7 |
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KID65003FT-EL/H | New | No | Yes | Yes | TSSOP-16 | Taping | 5,000 | Yes | Yes | Request Sample |
| KID65003FT-EL/HU | New | Yes | Yes | Yes | TSSOP-16 | Taping | 5,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
