IGBTs
KGF15N120KDA
New

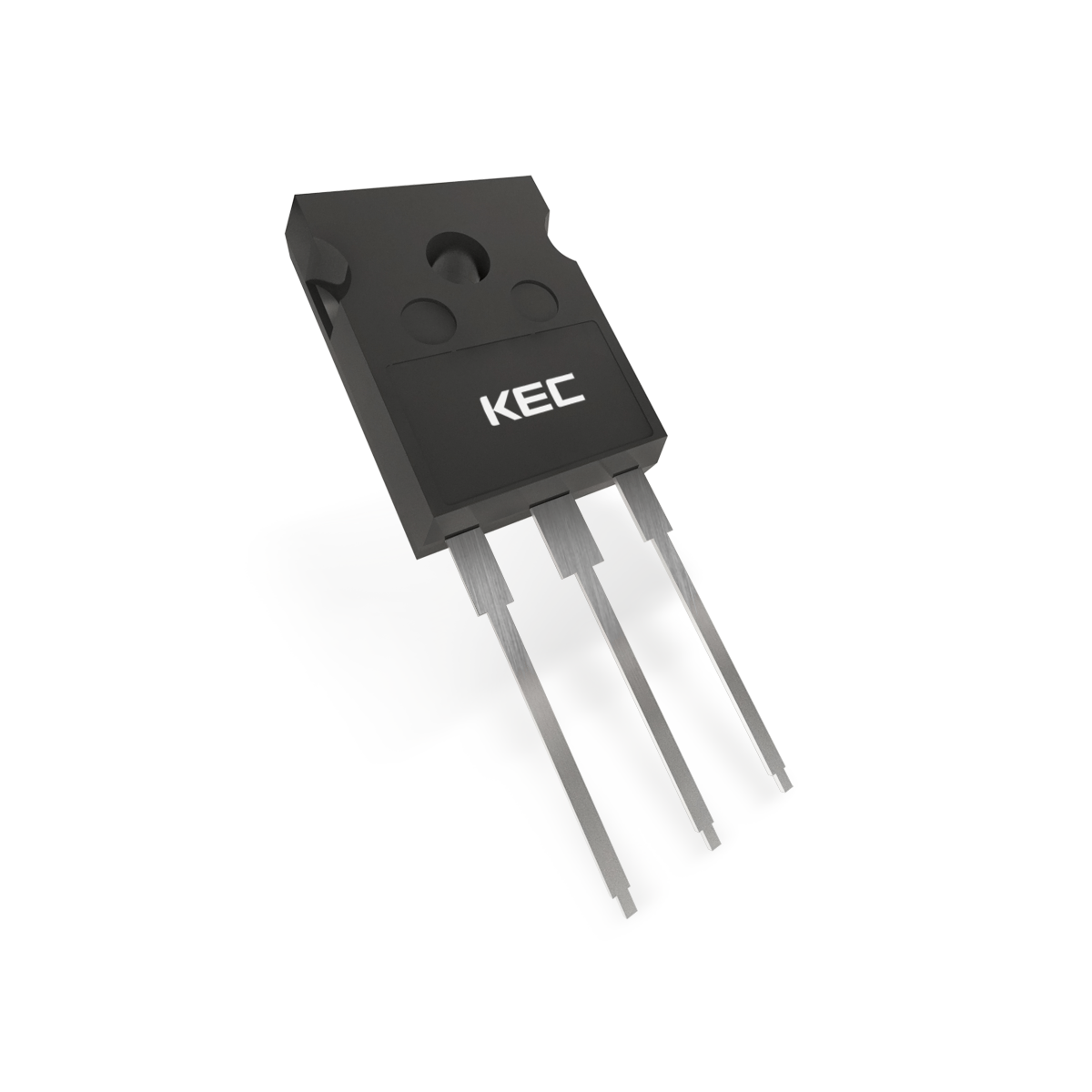

Field Stop Trench IGBTs, TO-247, 1200V, 15A
Application
Motor drivers
Features
· High speed switching
· High ruggedness, temperature stable behavior
· breakdown voltage
· Maximum junction temperature:150℃
· Short Circuit Withstand Times > 10㎲@TJ=START
· Extremely Enhanced Avalanche Capability
| Item No | KGF15N120KDA |
|---|---|
| Package | TO-247 |
| Built in Diode | Y |
| VCES[V] | 1200 |
| VGES[V] | ±20 |
| IC[A]@25℃ | 30 |
| IC[A]@100℃ | 15 |
| ICM[A] | 45 |
| IF[A]@25℃ | 30 |
| PD[W]@25℃ | 140 |
| TJ[℃] | 150 |
| Min VGE(th)[V]@25℃ | 4.5 |
| Max VGE(th)[V]@25℃ | 7 |
| Typ VCE(sat)[V]@25℃ | 1.95 |
| Typ VF[V]@25℃ | 2.2 |
Product Datasheet
-
[Product Datasheet] KGF15N120KDA_R0.pdf
971 KBPDF
-
[Marking Information] M KGF15N120KDA.pdf
332.7 KBPDF
-
[Package Dimension] TO-247 PKG_R2.pdf
403.5 KBPDF
-
[Packing Information] TO-247 Packing.pdf
923 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KGF15N120KDA-U/HA | New | No | Yes | Yes | TO-247 | Taping | 30 | Yes | Yes | Request Sample |
| KGF15N120KDA-U/PA | New | No | Yes | No | TO-247 | Taping | 30 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
