Low Voltage MOSFET
KU3600N10SZA

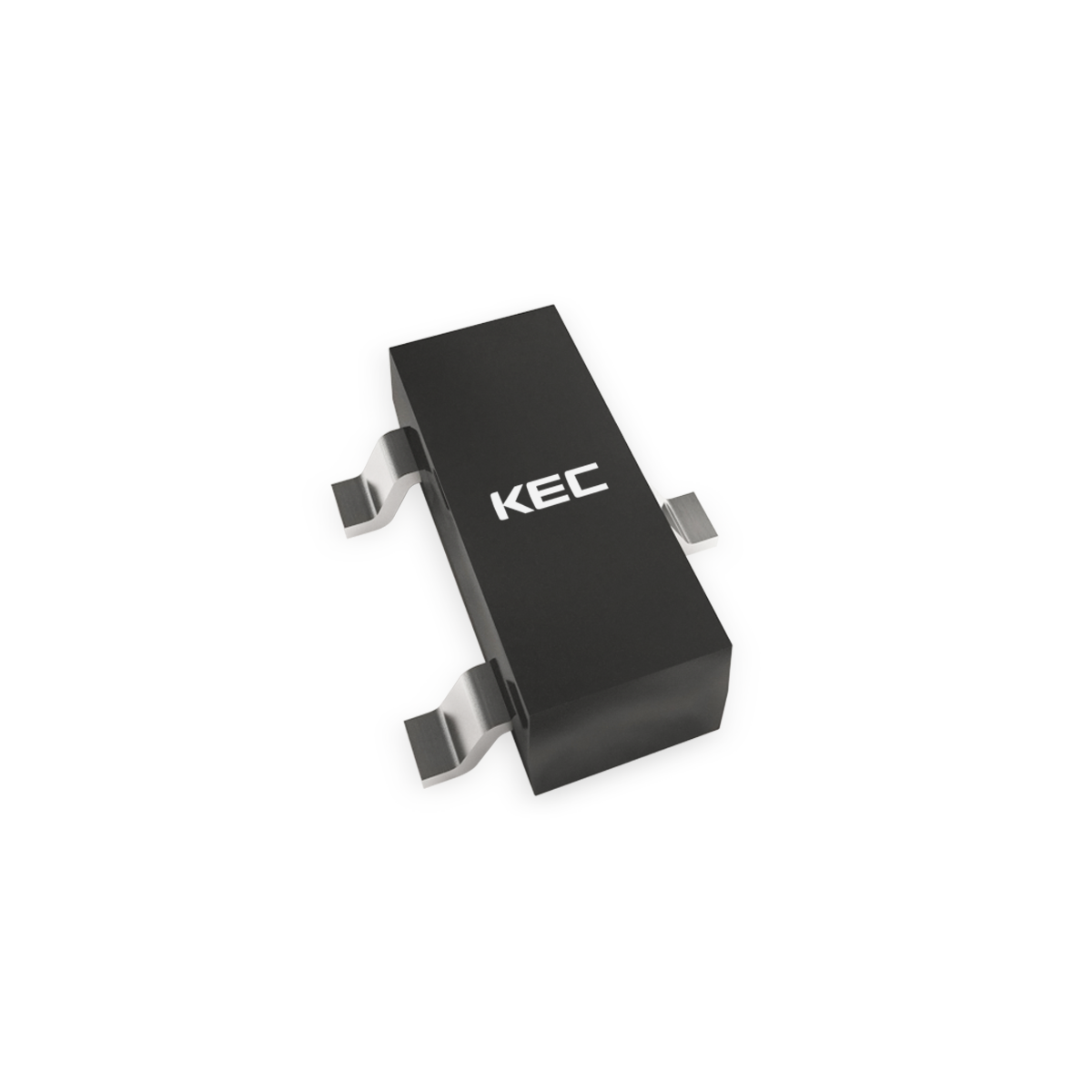

General Trench MOSFETs, SOT-23, 100V, 1.3A
Application
· Consumer - LCD/OLED TV
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using DC/DC Converter
· Synchronous Rectification and a load switch
| Item No | KU3600N10SZA |
|---|---|
| Package | SOT-23 |
| Polarity | N |
| BVDSS[V] | 100 |
| ID[A] | 1.3 |
| PD[W] | 1.25 |
| RDS(ON)@10V[Ω] | 0.36 |
| Qg [nC] | 3.3 |
| Vth_MIN[V] | 1 |
| Vth_MAX[V] | 2.5 |
| Ciss[pF] | 147 |
| ESD DIODE | Y |
Product Datasheet
-
[Product Datasheet] KU3600N10SZA.pdf
2.3 MBPDF
-
[Marking Information] M KU3600N10SZA.pdf
178.7 KBPDF
-
[Package Dimension] SOT-23 PKG_R3.pdf
156.1 KBPDF
-
[Packing Information] SOT-23 Packing.pdf
1.3 MBPDF
-
[Recommended Pad Dimension] SOT-23 RPD.pdf
16.7 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KU3600N10SZA-RTK/H | Active | No | Yes | Yes | SOT-23 | Taping | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
