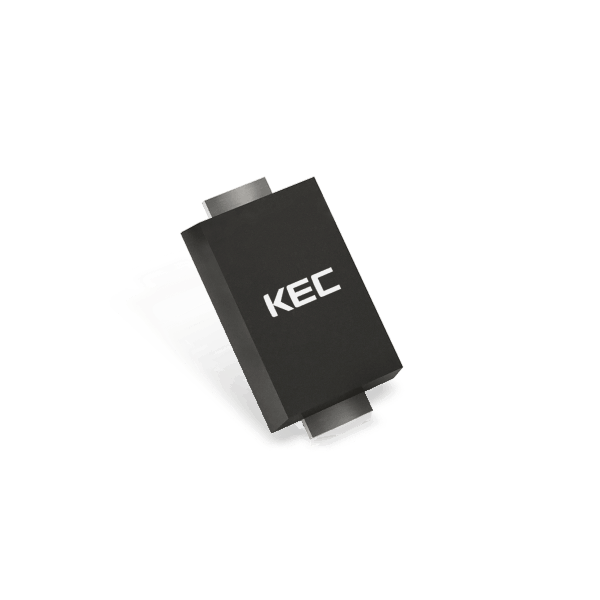

Schottky Barrier Diode
SMAFAB54J
Surface Mounted Schottky Barrier Rectifier, SMAFA, 40V, 5A
Application
· DC-DC
· SMPS
· AC-DC
· Reverse polarity protection
Features
· Low power loss, high efficiency
· Low leakage current
| Item No | SMAFAB54J |
|---|---|
| Package | SMAFA |
| VR[V] | 40 |
| IO[A] | 5 |
| VFM_MAX[V] | 0.52 |
| IR_MAX[uA] | 150 |
Product Datasheet
-
[Product Datasheet] SMAFAB54J.pdf
1.4 MBPDF
-
[Marking Information] M SMAFAB54J.pdf
372.6 KBPDF
-
[Packing Information] SMAFA Packing_R1.pdf
2.2 MBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| SMAFAB54J-RTK/H | Active | No | Yes | Yes | SMAFA | Reel | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
