Series Regulator (Bipolar LDO), DPAK, 0.25A, 10V
· The KIA78DL series are three-terminal regulators with maximum output current 250mA, consuming low standby current, best suited as backup power supply for memory, etc. and power supply for medium size circuits. This series is further provided with various protective functions.
· Low Standby Current Consumption : 500 A (Typ.) · Maximum Output Current : 250mA (Max.) · Less I/O Voltage Difference : 0.6V (Max) · Multiple Protections : Power Reverse Connection/60V Load Dump/ Thermal Protection/Short-Circuit Protection"
| Item No | KIA78DL10F |
|---|---|

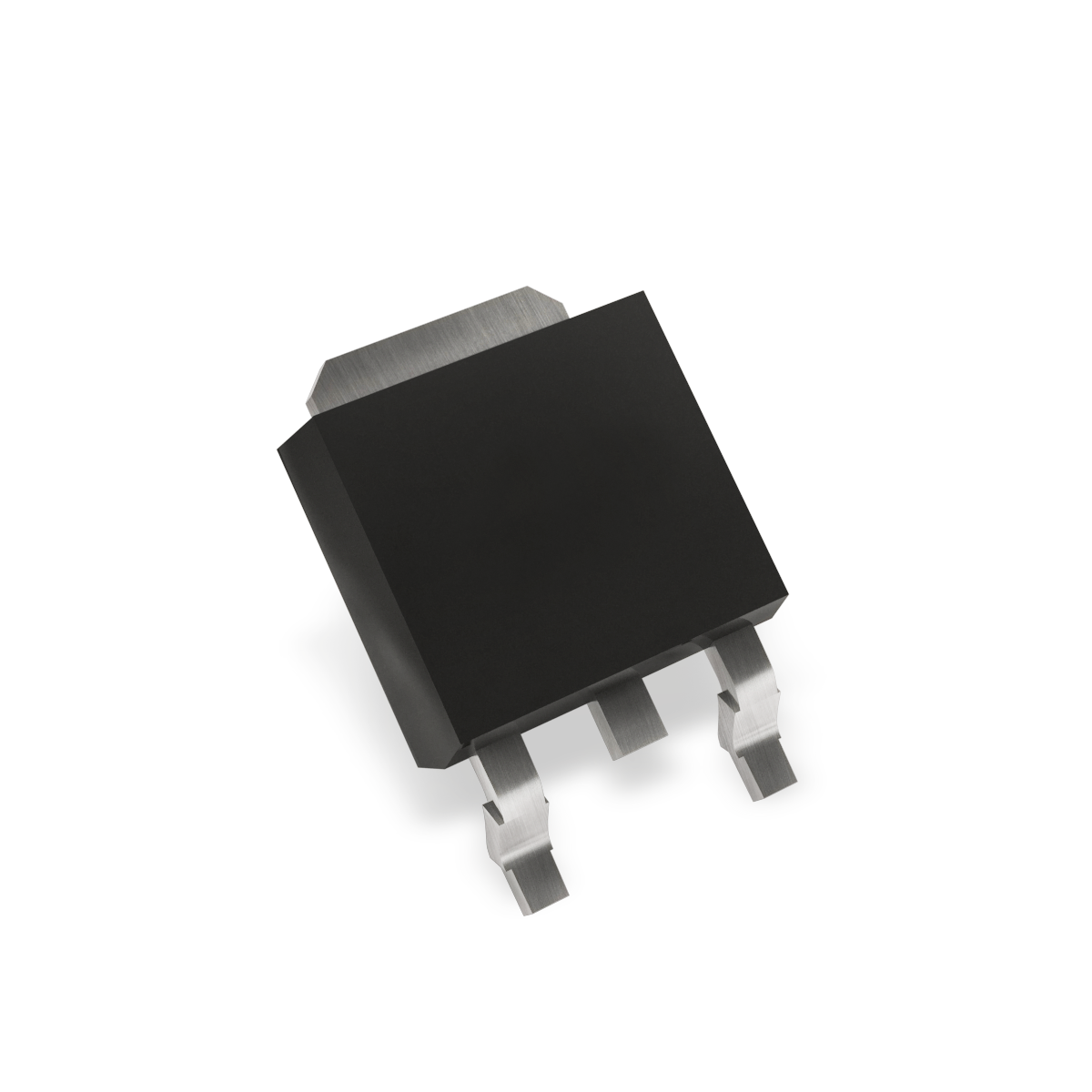

| Package | DPAK/DPAK(3) |
| IO[A] | 0.25 |
| VDROP[V] | 0.4 |
| VOUT[V] | 10 |
| On/Off control | N |
| VIN_MAX[V] | 29 |
Product Datasheet
-
[Product Datasheet] KIA78DL05~15F_PI_R8.pdf
169.5 KBPDF
-
[Marking Information] M KIA78DL10F.pdf
10 KBPDF
-
[Package Dimension] DPAK PKG.pdf
74.9 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK Packing_R3.pdf
643.7 KBPDF
-
[Packing Information] DPAK(3) Packing_R2.pdf
884.7 KBPDF
-
[Recommended Pad Dimension] DPAK RPD.pdf
16.8 KBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KIA78DL10F-RTF/PQ | X | No | Yes | No | DPAK(3) | Reel | 3,000 | Yes | Yes | Request Sample |
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
