Low Voltage MOSFET
KU2307D

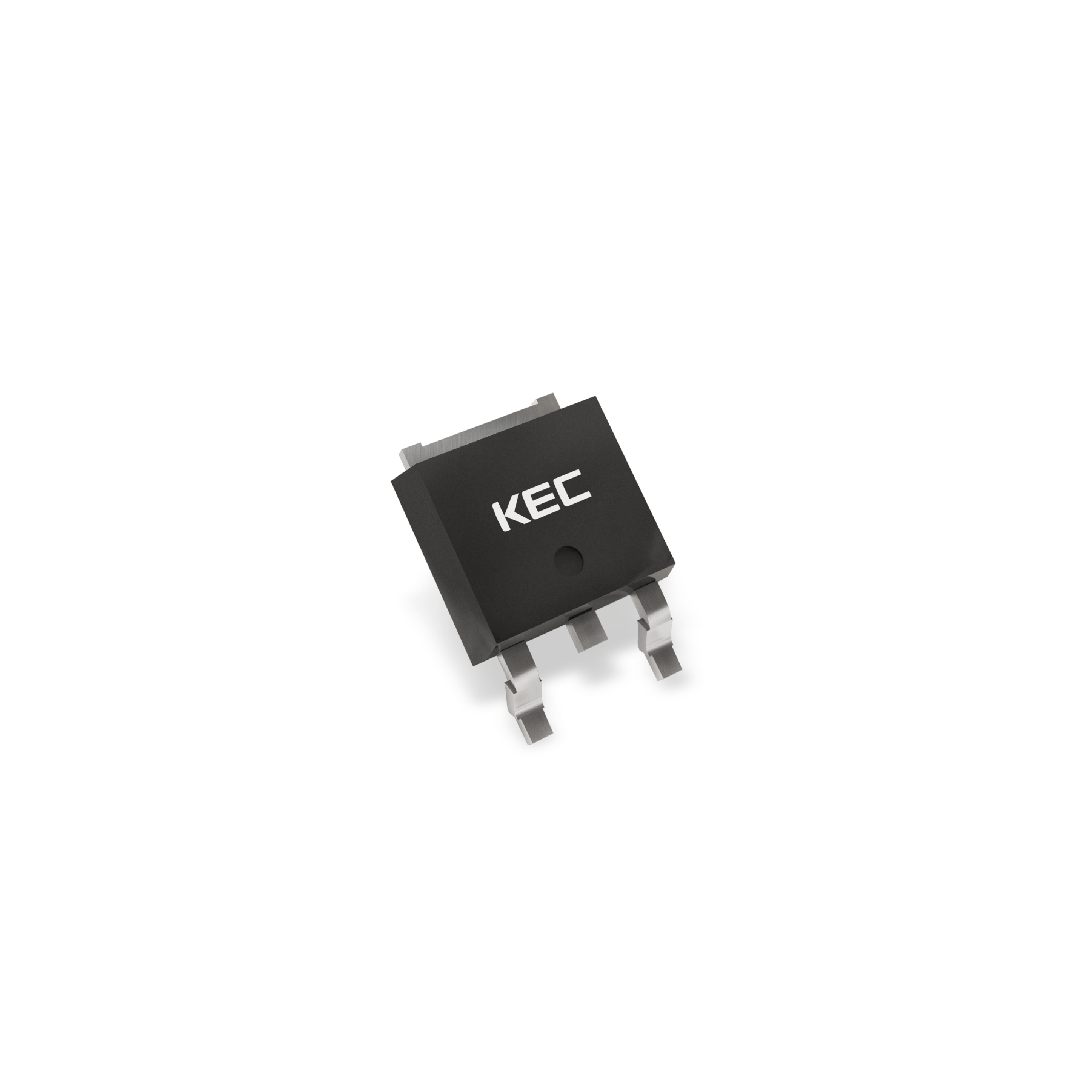

General Trench MOSFETs, DPAK(1), DPAK(3), 30V, 5.4mΩ, 79A
Application
DC/DC Converter
Features
· Fast switching time
· Low on resistance
· Low gate charge
· Excellent avalanche characteristics
| Item No | KU2307D |
|---|---|
| Package | DPAK(1)/DPAK(3) |
| Polarity | N |
| BVDSS[V] | 30 |
| ID[A] | 79 |
| PD[W] | 57 |
| RDS(ON)@10V[Ω] | 0.0054 |
| RDS(ON)@4.5V[Ω] | 0.0101 |
| Qg [nC] | 24.6 |
| Vth_MIN[V] | 1 |
| Vth_MAX[V] | 3 |
| Ciss[pF] | 1313 |
Product Datasheet
-
[Product Datasheet] KU2307D_R3.pdf
760.6 KBPDF
-
[Marking Information] M KU2307D.pdf
335.3 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Packing Information] DPAK(3) Packing.pdf
1.5 MBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KU2307D-RTF/H | Active | No | Yes | Yes | DPAK(1)/DPAK(3) | Taping | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
