Low Voltage MOSFET
KU2303D

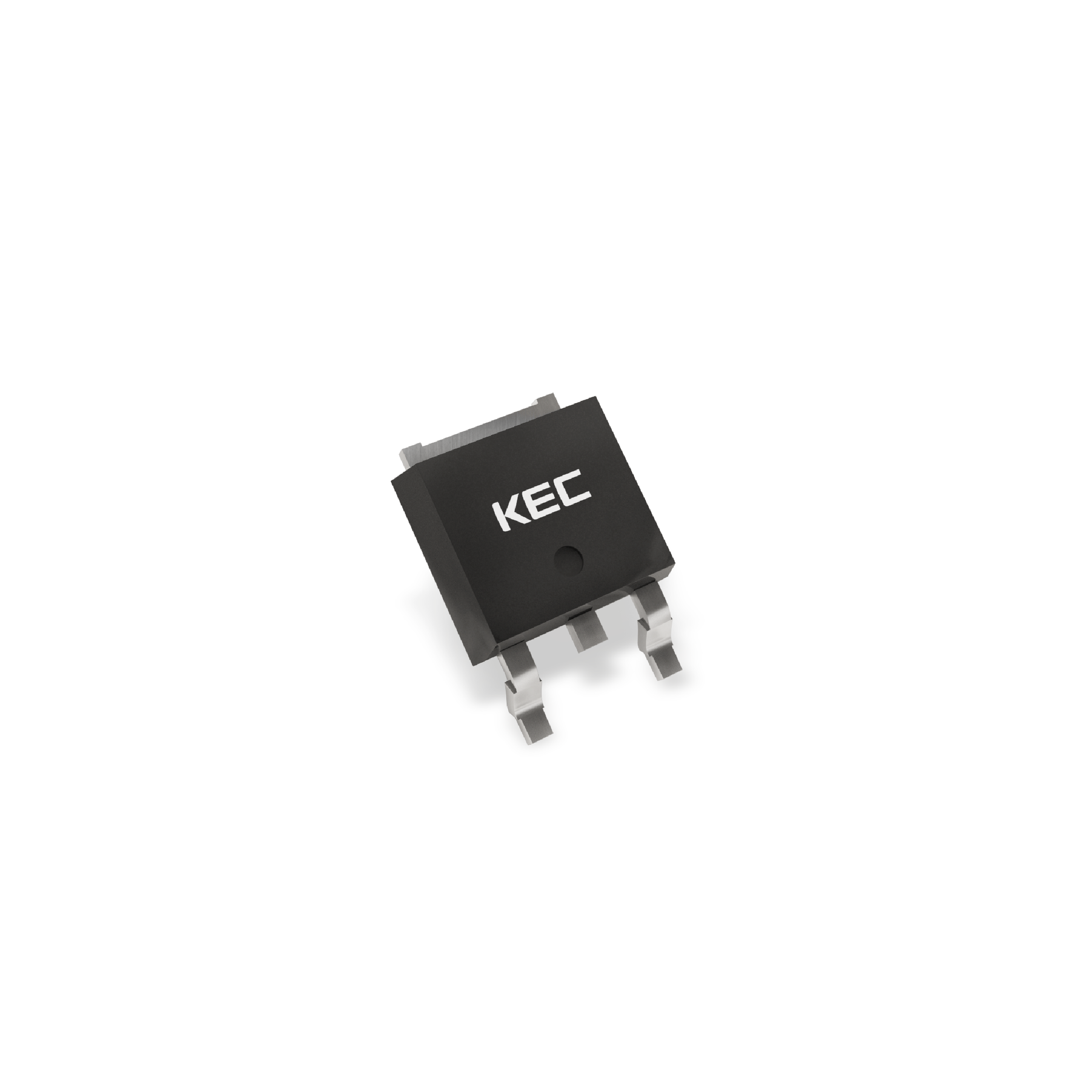

General Trench MOSFETs, DPAK(1), DPAK(3), 30V, 7.8mΩ, 62A
Application
DC/DC Converter
Features
· Fast switching time
· Low on resistance
· Low gate charge
· Excellent avalanche characteristics
| Item No | KU2303D |
|---|---|
| Package | DPAK(1)/DPAK(3) |
| Polarity | N |
| BVDSS[V] | 30 |
| ID[A] | 62 |
| PD[W] | 52 |
| RDS(ON)@10V[Ω] | 0.0078 |
| RDS(ON)@4.5V[Ω] | 0.0142 |
| Qg [nC] | 18.4 |
| Vth_MIN[V] | 1 |
| Vth_MAX[V] | 3 |
| Ciss[pF] | 937 |
Product Datasheet
-
[Product Datasheet] KU2303D_R4.pdf
1.7 MBPDF
-
[Marking Information] M KU2303D.pdf
185.6 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Packing Information] DPAK(3) Packing.pdf
1.5 MBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KU2303D-RTF/H | Active | No | Yes | Yes | DPAK(1)/DPAK(3) | Taping | 3,000 | Yes | Yes | Request Sample |
