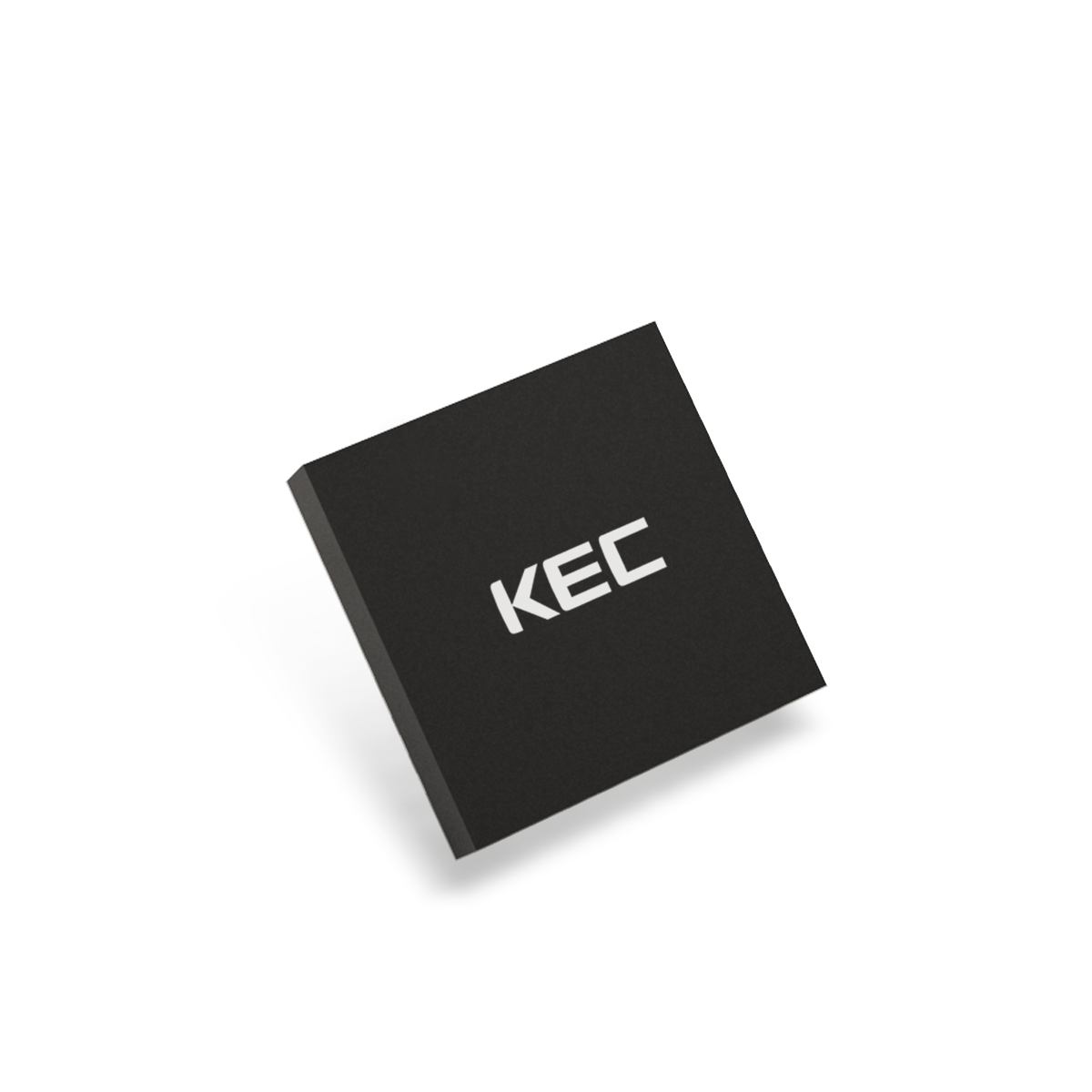

Three Phase MOSFET Gate Driver, QFN-28, 3.3V
· Lawn and garden equipment
· Battery-operated power tools
· Industrial grinders
· Continuous positive airway pressure(CPAP) machines
· Vacuum cleaners
· High-current 3-phase gate drive for N-channel MOSFETs
· 5.5 to 38 V supply voltage range
· Internal LDO Regulator (3.3V)
· Internal charge pump Regulator
· Motor phase short-to-supply and short-to-ground detection
· Undervoltage, Overtemperature monitors
· Suffix U : Qualified to AEC-Q100 Grade 1
| Item No | KIB2040QN33 |
|---|---|
| Package | QFN-28 |
Related Solution
Product Datasheet
-
[Product Datasheet] KIB2040QN33_50.pdf
377.4 KBPDF
-
[Package Dimension] QFN-28 PKG.pdf
218 KBPDF
-
[Packing Information] QFN-28 Packing.pdf
524.6 KBPDF
-
[Recommended Pad Dimension] QFN-28 RPD.pdf
50.2 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KIB2040QN33-EL/HU | Active | Yes | Yes | Yes | QFN-28 | Taping | 5,000 | Yes | Yes | Request Sample |
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
