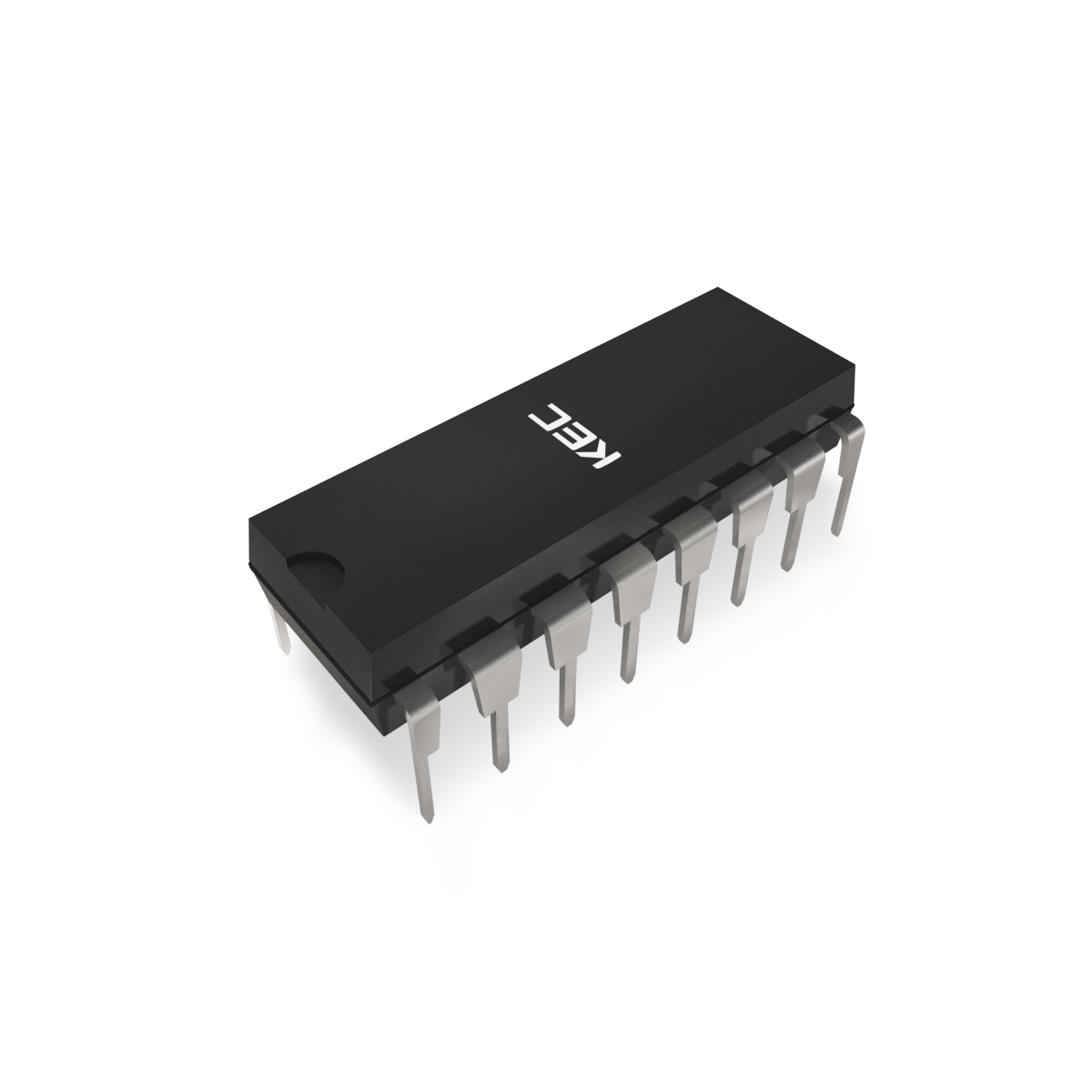

Analog CMOS Integrated Circuits, DIP-16, Voltage Mode PWM Controller IC
-
Designed primarily for power supply control, this device offers the systems engineer the flexibility to tailor the power supply control circuitry to a specific application.
· Completed PWM Power Control Circuitry.
· Uncommitted Outputs for 200mA Sink or Source Current.
· Output Control Selects Single-Ended or Push-Pull Operation.
· Internal Circuitry Prohibits Double Pulse at Either Output.
· Variable Dead Time Provides Control Over Total Range.
· Internal Regulator Provides a Stable 5V Reference Supply With 5% Tolerance.
· Circuit Architecture Allows Easy Synchronization.
| Item No | KIA494AP |
|---|---|
| Package | DIP-16 |
Product Datasheet
-
[Product Datasheet] KIA494AP_AF.pdf
73.7 KBPDF
-
[Marking Information] M KIA494AP.pdf
9.2 KBPDF
-
[Package Dimension] DIP-16 PKG.pdf
61 KBPDF
-
[Packing Information] DIP-16 Packing.pdf
98.9 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KIA494AP/P | Active | No | Yes | No | DIP-16 | Bulk | 25 | Yes | Yes | Request Sample |
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
