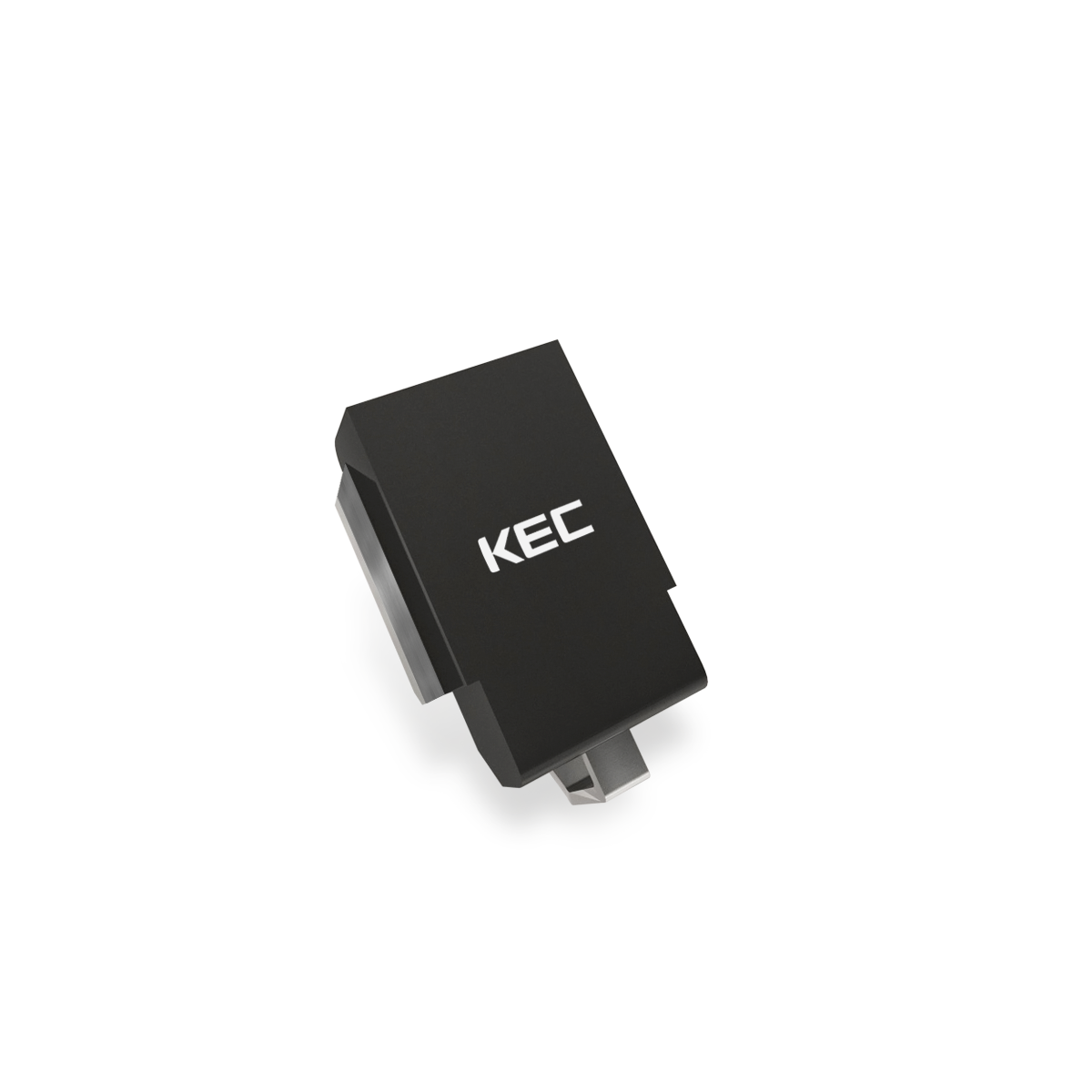

Zener Diode
Z5W27V
Power Zener, DO-218, 5000mW, 27V
Application
· Automotive - Powertrain Alternator
Features
· Excellent clamp voltage characteristics that protect electronic system from any kind of surge
· High surge power withstanding capabilities that absorb load dump surge
· Excellent surge responsibility for steep surge absorption
· Surface mount type is available for easy applications
| Item No | Z5W27V |
|---|---|
| Package | DO-218 |
| PD[mW] | 5000 |
| VZ_MIN[V] | 24 |
| VZ_TYP[V] | 27 |
| VZ_MAX[V] | 30 |
Product Datasheet
-
[Product Datasheet] Z5W27V.pdf
90.8 KBPDF
-
[Marking Information] M Z5W27V.pdf
25.4 KBPDF
-
[Package Dimension] DO-218 PKG.pdf
59.2 KBPDF
-
[Packing Information] DO-218 Packing.pdf
148.3 KBPDF
-
[Recommended Pad Dimension] DO-218 RPD.pdf
326.5 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| Z5W27V | - | - | - | - | - | - | - | - | - | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
