Low Voltage MOSFET

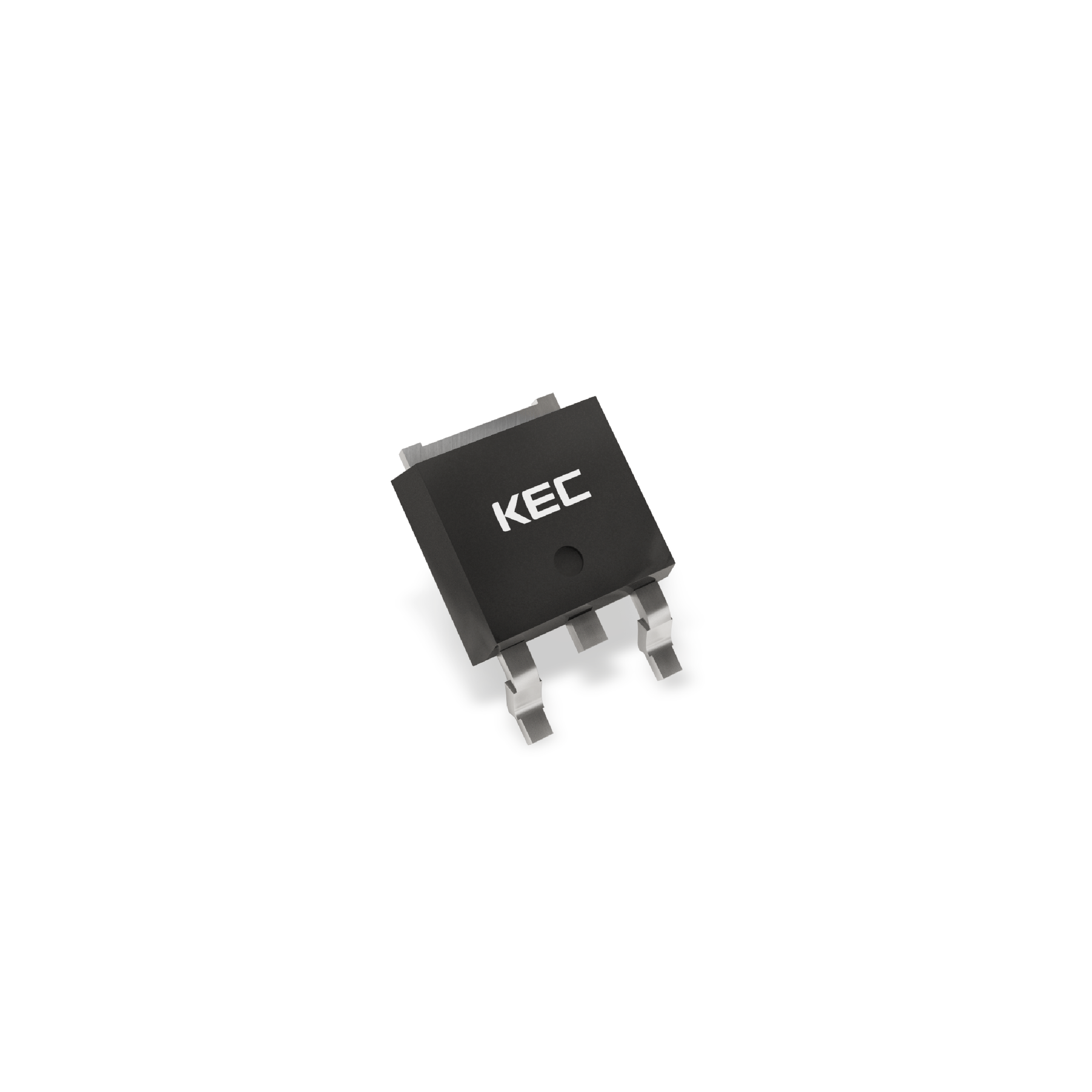

KUS086N10DA
Split Gate Trench MOSFETs, DPAK(1), DPAK(3), 100V, 63A
Application
· DC/DC Converter, Synchronous Rectification and a load switch in battery powered applications
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using DC/DC Converter, Synchronous Rectification and a load switch
| Item No | KUS086N10DA |
|---|---|
| Package | DPAK(1)/DPAK(3) |
| Polarity | N |
| BVDSS[V] | 100 |
| ID[A] | 63 |
| PD[W] | 62.5 |
| RDS(ON)@10V[Ω] | 0.0086 |
| Qg [nC] | 54 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 3440 |
| ESD DIODE | N |
Related Solution
Product Datasheet
-
[Product Datasheet] KUS086N10DA.pdf
2.5 MBPDF
-
[Marking Information] M KUS086N10DA.pdf
243.9 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Packing Information] DPAK(3) Packing.pdf
1.5 MBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KUS086N10DA-RTF/HS | Active | No | Yes | Yes | DPAK(1)/DPAK(3) | Taping | 3,000 | Yes | Yes | Request Sample |
| KUS086N10DA-RTF/HSQ | Active | No | Yes | Yes | DPAK(1)/DPAK(3) | Taping | 3,000 | Yes | Yes | Request Sample |
