Low Voltage MOSFET
KUS220N10DA

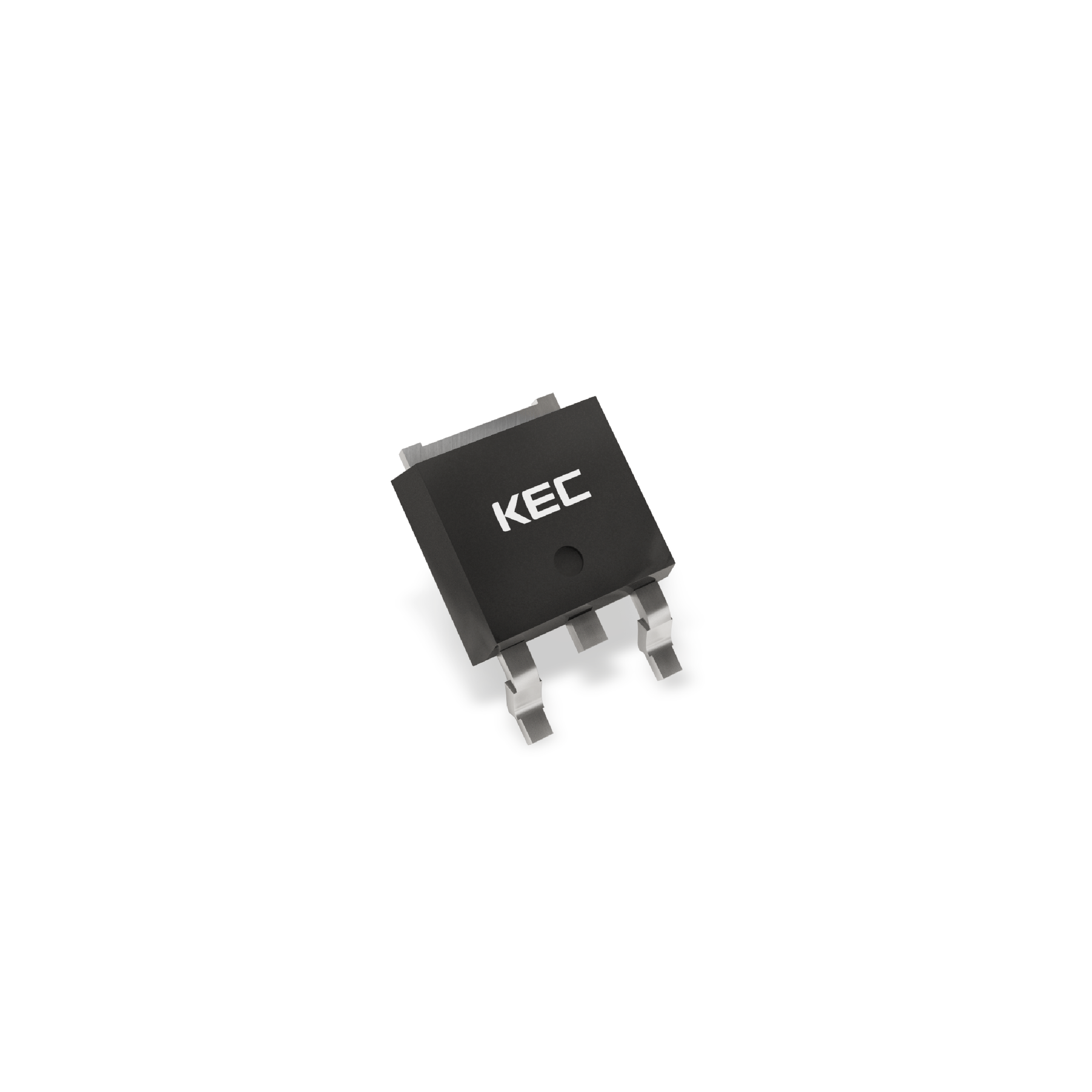

Split Gate Trench MOSFETs, DPAK(1), DPAK(3), 100V, 32A
Application
· Consumer - LCD/OLED TV SMPS
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using DC/DC Converter, Synchronous Rectification and a load switch
| Item No | KUS220N10DA |
|---|---|
| Status | Active |
| AEC-Q | N |
| Package | DPAK(1)/DPAK(3) |
| Polarity | N |
| BVDSS[V] | 100 |
| ID[A] | 32 |
| PD[W] | 39 |
| RDS(ON)@10V[Ω] | 0.022 |
| Qg [nC] | 18 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 1170 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KUS220N10DA.pdf
3.2 MBPDF
-
[Marking Information] M KUS220N10DA.pdf
243.5 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Packing Information] DPAK(3) Packing.pdf
1.5 MBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
