High Voltage MOSFET
KF4N60D

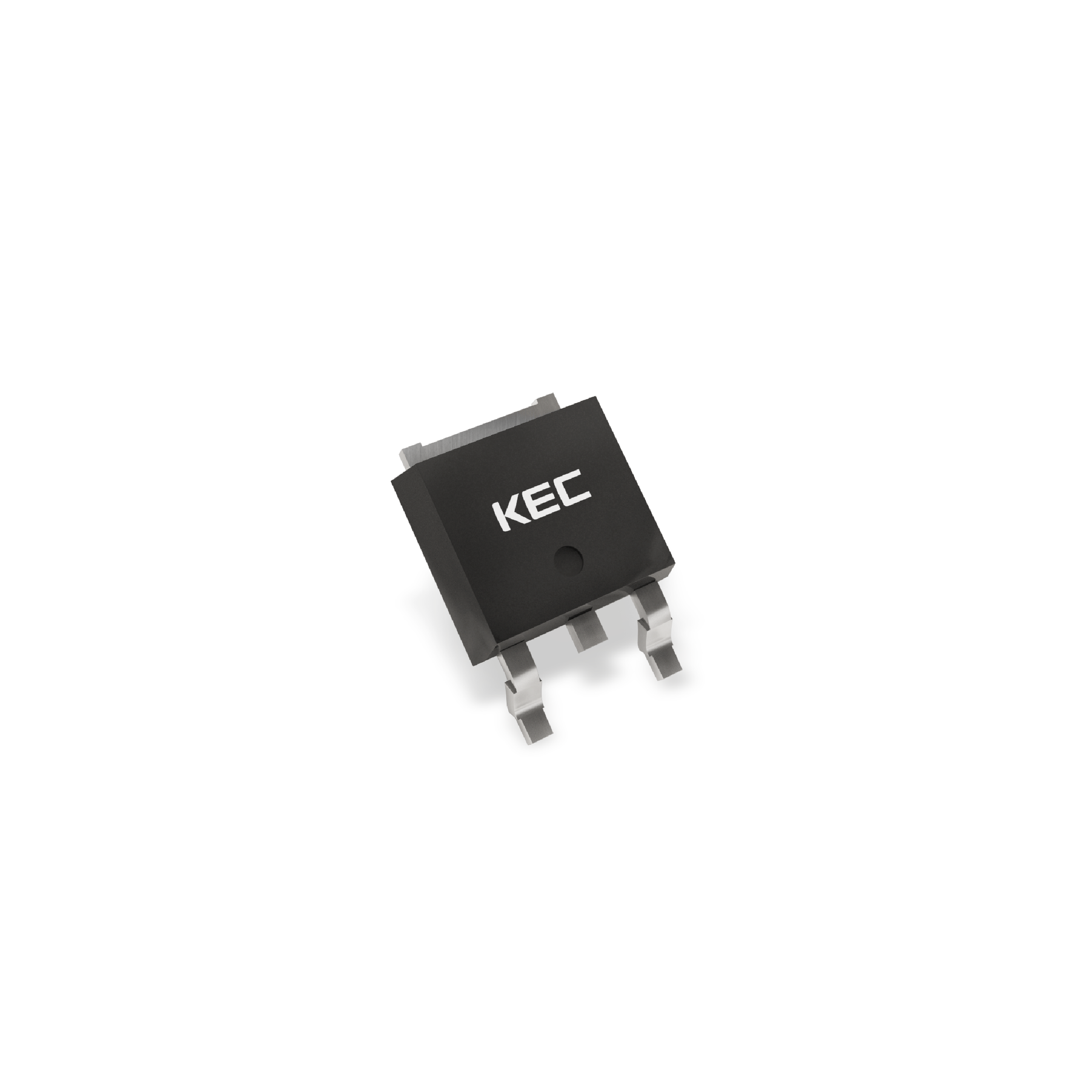

Planar MOSFETs, DPAK(1), 600V, 3.2A
Application
· Consumer - Battery Charger Adaptor and Home Appliance (Air Purifier,Refrigerator)
· Industrial - Automation and Server Power
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using switching mode power supplies.
| Item No | KF4N60D |
|---|---|
| Package | DPAK(1) |
| Polarity | N |
| BVDSS[V] | 600 |
| ID[A] | 3.2 |
| PD[W] | 59.5 |
| RDS(ON)@10V[Ω] | 2.5 |
| Qg [nC] | 10 |
| Vth_MIN[V] | 2.5 |
| Vth_MAX[V] | 4.5 |
| Ciss[pF] | 480 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KF4N60D.pdf
446.5 KBPDF
-
[Marking Information] M KF4N60D.pdf
335.1 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KF4N60D-RTF/HS | Active | No | Yes | Yes | DPAK(1) | Taping | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
