High Voltage MOSFET

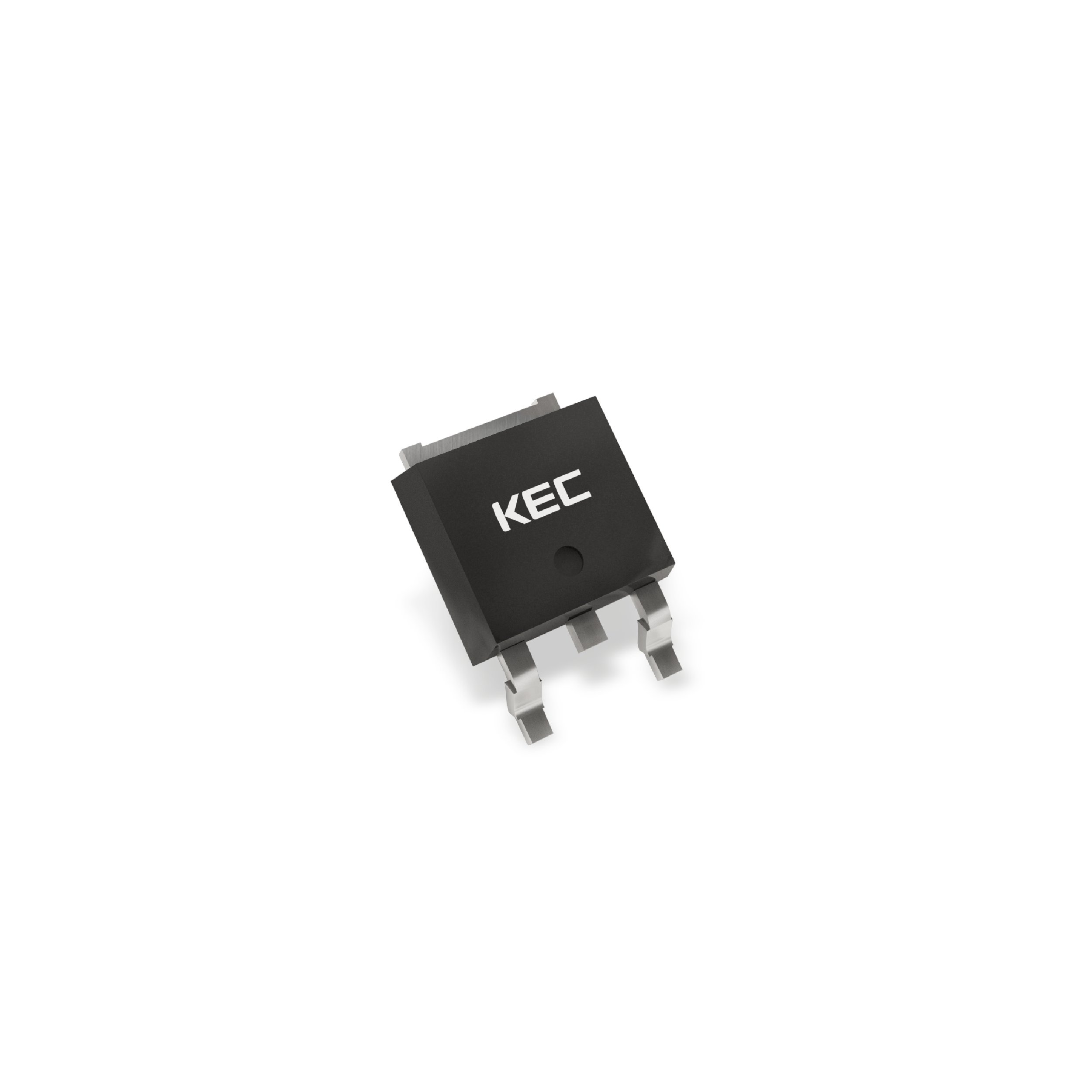

KF7N50D
Planar MOSFETs, DPAK(1), 500V, 5.5A
Application
· Electronic ballast and switching mode power supplies.
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using switching mode power supplies.
| Item No | KF7N50D |
|---|---|
| Status | Active |
| AEC-Q | N |
| Package | DPAK(1) |
| Polarity | N |
| BVDSS[V] | 500 |
| ID[A] | 5.5 |
| PD[W] | 69.4 |
| RDS(ON)@10V[Ω] | 1 |
| Qg [nC] | 16 |
| Vth_MIN[V] | 2.5 |
| Vth_MAX[V] | 4.5 |
| Ciss[pF] | 710 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KF7N50D.pdf
421.8 KBPDF
-
[Marking Information] M KF7N50D.pdf
167.6 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
