High Voltage MOSFET
KF4N20LD

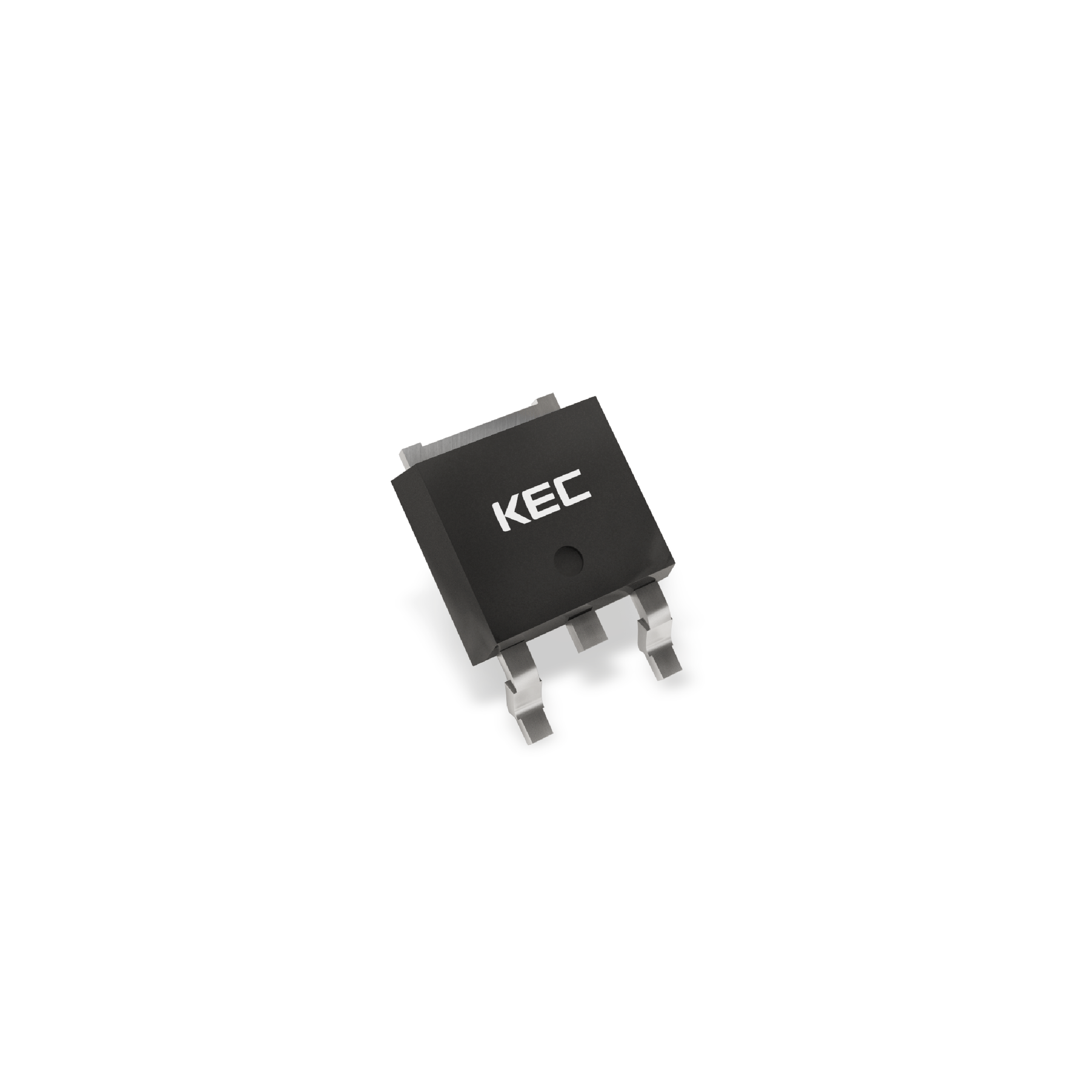

Planar MOSFETs, DPAK(1), 200V, 3.6A
Application
· LED Lighting and switching mode power supplies.
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using switching mode power supplies.
| Item No | KF4N20LD |
|---|---|
| Package | DPAK(1) |
| Polarity | N |
| BVDSS[V] | 200 |
| ID[A] | 3.6 |
| PD[W] | 31 |
| RDS(ON)@10V[Ω] | 1.15 |
| Qg [nC] | 2.9 |
| Vth_MIN[V] | 1 |
| Vth_MAX[V] | 2 |
| Ciss[pF] | 170 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KF4N20LD.pdf
641.3 KBPDF
-
[Marking Information] M KF4N20LD.pdf
169.9 KBPDF
-
[Package Dimension] DPAK(1) PKG.pdf
81.5 KBPDF
-
[Packing Information] DPAK(1) Packing.pdf
186.4 KBPDF
-
[Recommended Pad Dimension] DPAK(1) RPD.pdf
329.8 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KF4N20LD-RTF/HS | Active | No | Yes | Yes | DPAK(1) | Taping | 3,000 | Yes | Yes | Request Sample |
| KF4N20LD-RTF/HSQ | Active | No | Yes | Yes | DPAK(1) | Taping | 3,000 | Yes | Yes | Request Sample |
