Rectifier
U10A7CI

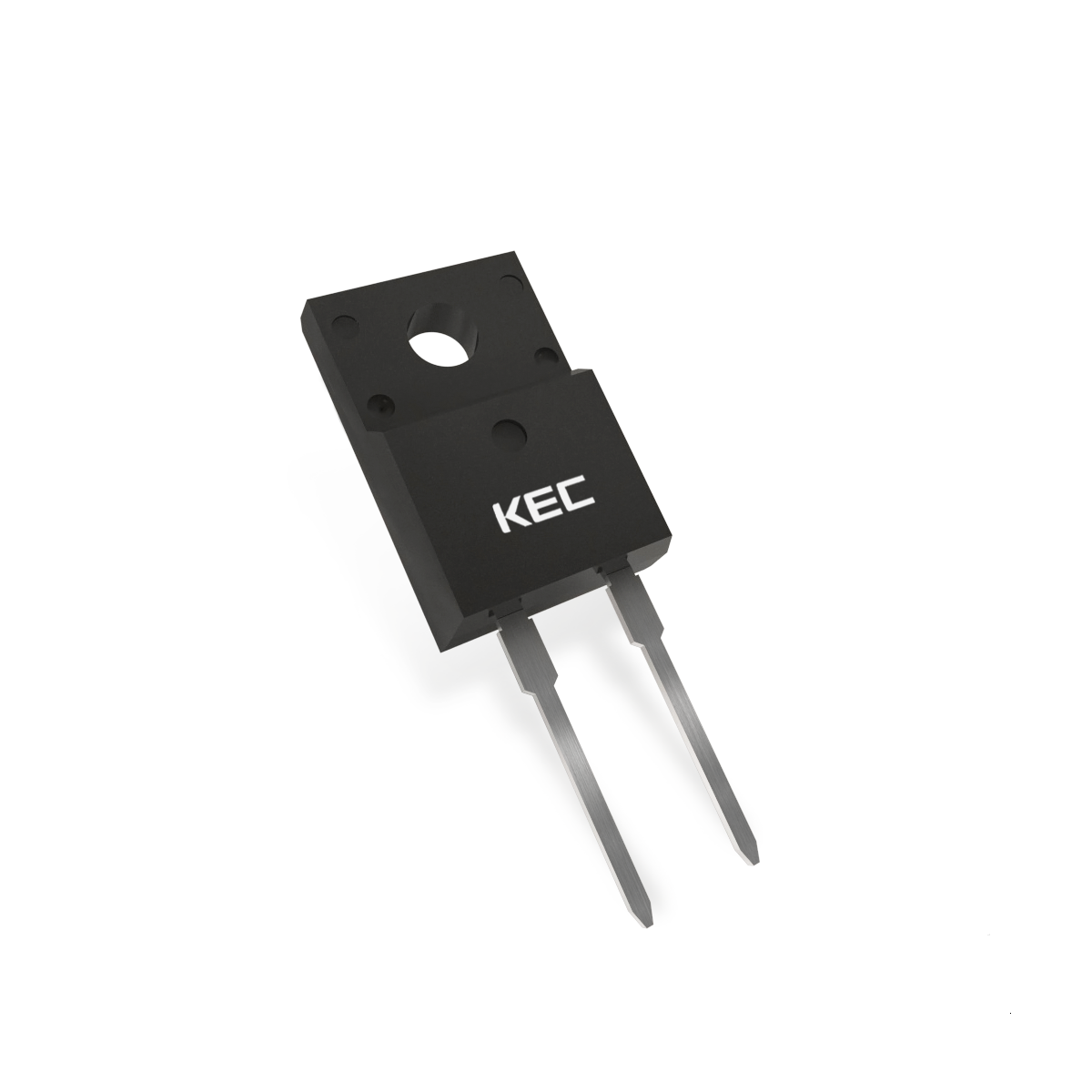

Ultra Fast Recovery Rectifier Diode, TO-220IS(2P), 700V, 10A
Application
· Automotive - Body Convenience
· Consumer - Battery Charger Adaptor, Home Appliance and LCD/OLED TV SMPS
· Industrial - Automation, Drives Fans/Pump, PV Inverter and Server Power
Features
· Ultra-Fast Recovery Time for High Efficiency
· Low Forward Voltage Drop, High Current Capability and Low Power Loss.
· Suitable for using PFC circuit
| Item No | U10A7CI |
|---|---|
| Package | TO-220IS(2P) |
| IO[A] | 10 |
| VFM_MAX[V] | 2.5 |
| VRRM[V] | 700 |
| trr_Max[㎱] | 35 |
Product Datasheet
-
[Product Datasheet] U10A7CI.pdf
158.7 KBPDF
-
[Marking Information] M U10A7CI.pdf
64.6 KBPDF
-
[Package Dimension] TO-220IS(2P) PKG.pdf
419.4 KBPDF
Ordering Information
| Part Number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| U10A7CI-U/PF | Active | No | Yes | No | TO-220IS(2P) | Taping | 50 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
